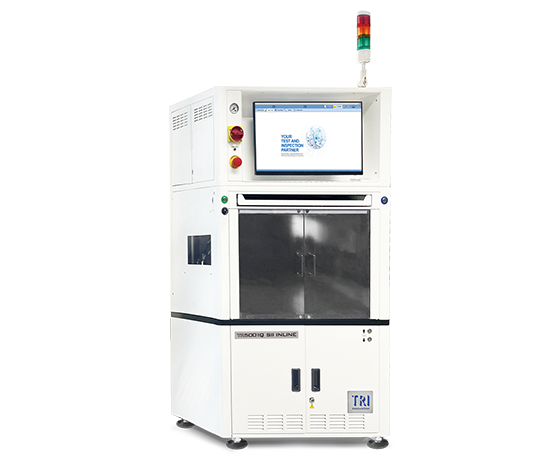

TR5001 SII INLINE
TR5100 SII INLINE
INTRODUCTION
Die neueste Generation von TRI's Parallel-Inline ICT+FCT Lösung bietet eine bahnbrechende Leistungsfähigkeit beim Multi-Core Parallel-Test mit bis zu 4 voneinander unabhängigen Cores für hohen Durchsatz. Ein SMEMA-kompatibles Inline-Handlingsystem reduziert den Arbeitsaufwand des Bedieners und erhöht den Durchsatz und ein langlebiges Quick Disconnect Interface sorgt in Verbindung mit der integrierten Auto-Kalibrierung und Selbstdiagnose langfristig für zuverlässiges Testen.
• Flexibler Multi-Core Parallel Tester der neuen Generation
• Auto-calibration by DMM
Tester Specifications
Analog/hybrid test points
1 Core- 3,456. Optional: 4,480
Operating System
Microsoft® Windows 11
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Industry 4.0
Communication Standard
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System
YMS 4.0 (Optional)
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
System Requirement
Power Requirement
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA.
Power Feature
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection.
Air Requirement
Dry Air 4 – 8 kg/cm2
Dimensions
WxDxH
900 x 1200 x 1680 mm
Note: not including signal tower,signal tower height: 392 mm
Weight
687 kg
