INTRODUCTION

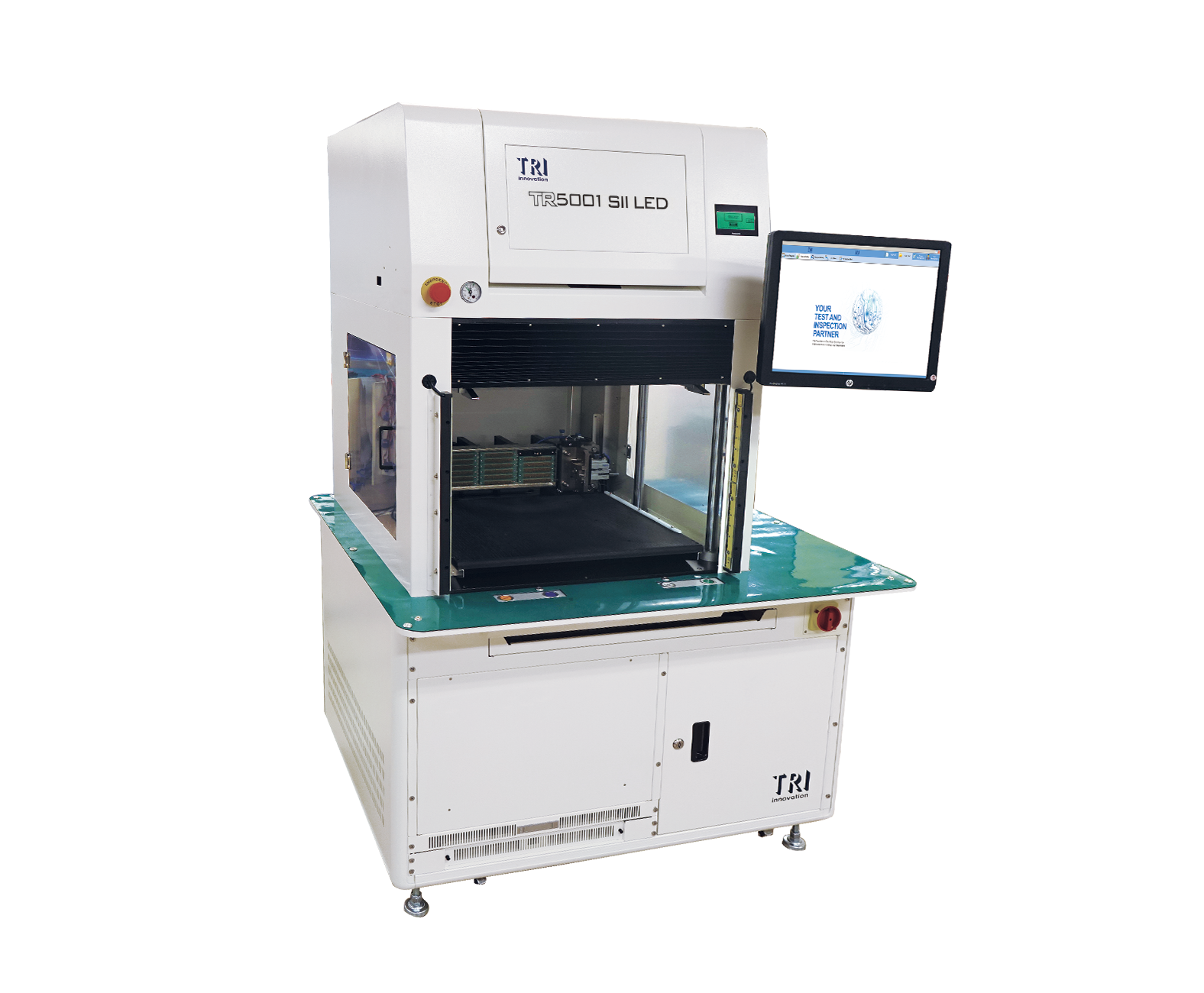

Die TR5001 SII LED-Serie ist die neueste ICT + FCT Innovation von TRI für LED-Beleuchtungstests, die mit bis zu 1080 LED-Testkanälen ausgestattet ist. Die ICT + FCT Lösung bietet fortschrittliche Multi-Core-Paralleltests mit bis zu 4 unabhängigen Kernen. Eine langlebige Schnelltrennschnittstelle sowie eine integrierte Autokalibrierung und Selbstdiagnose gewährleisten eine langfristige Testzuverlässigkeit. Die TR5001 SII LED-Serie eignet sich für LED-Beleuchtungstests in der Automobilindustrie.
• Mehrkern-Paralleltest
• LED Analysator im System
• Non-Multiplexing 1: 1 pro Pin-Architektur
• Skalierbarer MDA zu ICT und Funktionstest
• Hohe Genauigkeit und hoher Durchsatz
• Bis zu 1080 LED-Kanäle testbar
• Langlebige Schnelltrennschnittstelle
• Automatische Fördererbreitenpositionierung
• Benachrichtigung über Verbiegung und Fehlausrichtung
Tester Specifications
|
Analog/hybrid test points |
2048 |
|
Operating System |
Microsoft® Windows compatible PC with USB, Windows 10 |
|
Fixture Type |
Inline or Offline with Long Lifespan Quick Disconnection Interface |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
In-Tester LED Analyzer
|
Repeatability |
1% |
|
LED Channels |
Up to 1080 LED Test channels. (Top: up to 540 / Bottom: up to 540.) |
|
Fixture Connection |
Quick Disconnection Interface (QDI) |
Optional Components
|
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
Serial Test Controller (STC) Programming
-
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
|
|
Yield Management System |
YMS 4.0 |
Board Handling
|
Min. PCB Size |
70 x 70 mm |
|
Max. PCB Size |
500 x 460 mm |
|
PCB Thickness |
0.6 - 5 mm |
Dimensions
|
WxDxH |

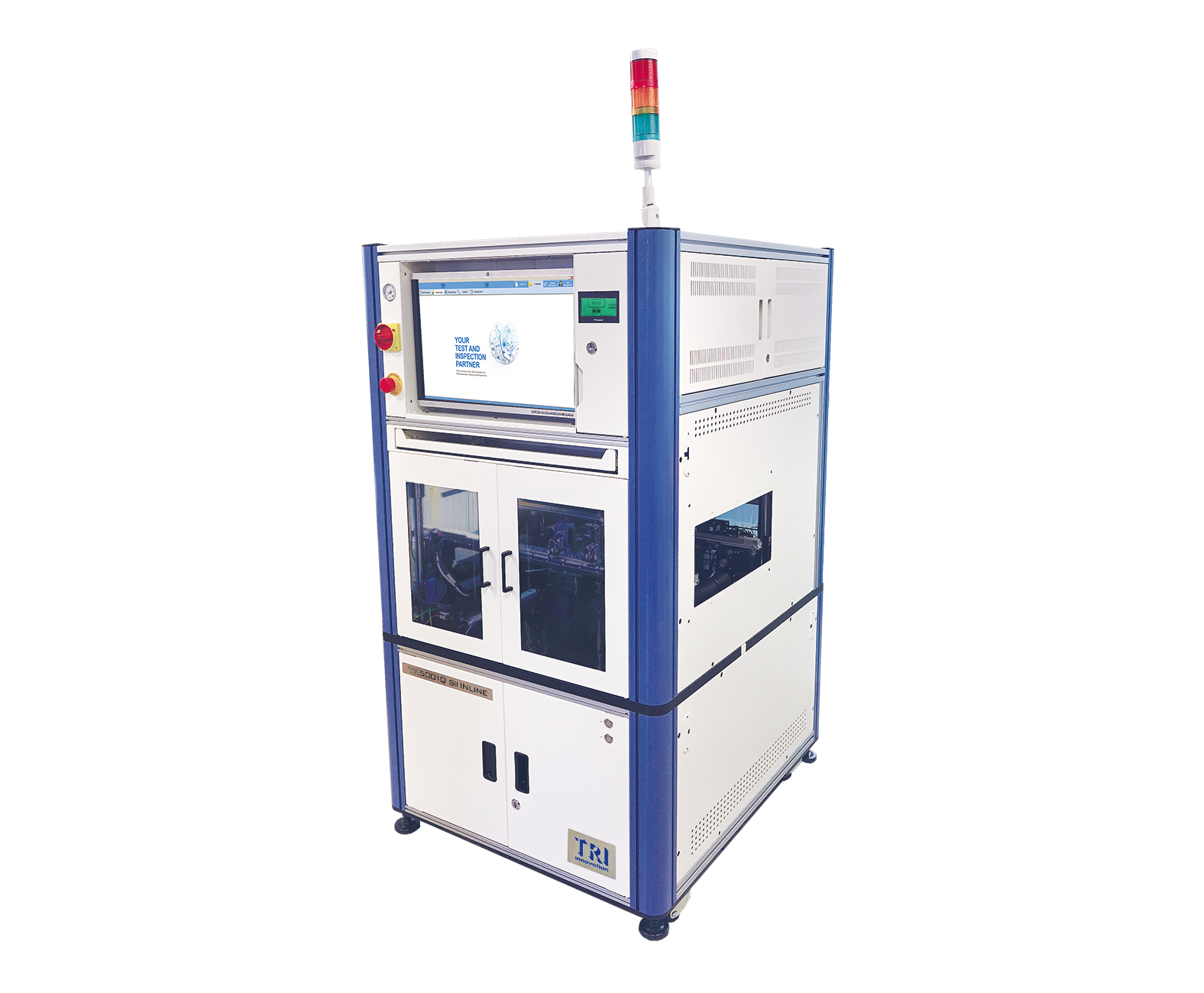

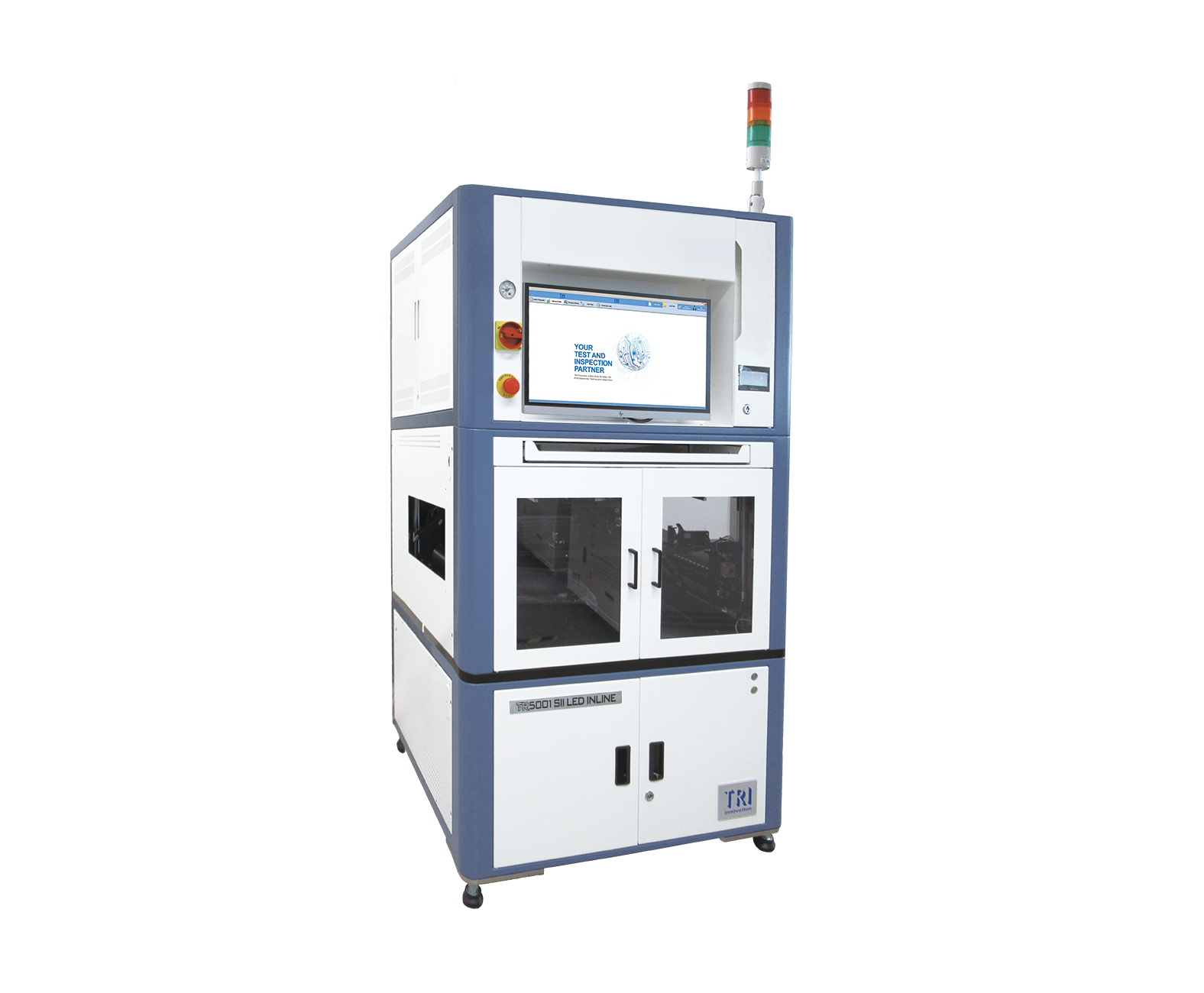

TR5001(D/Q) SII INLINE: 900 x 1180 x 1887 mm*

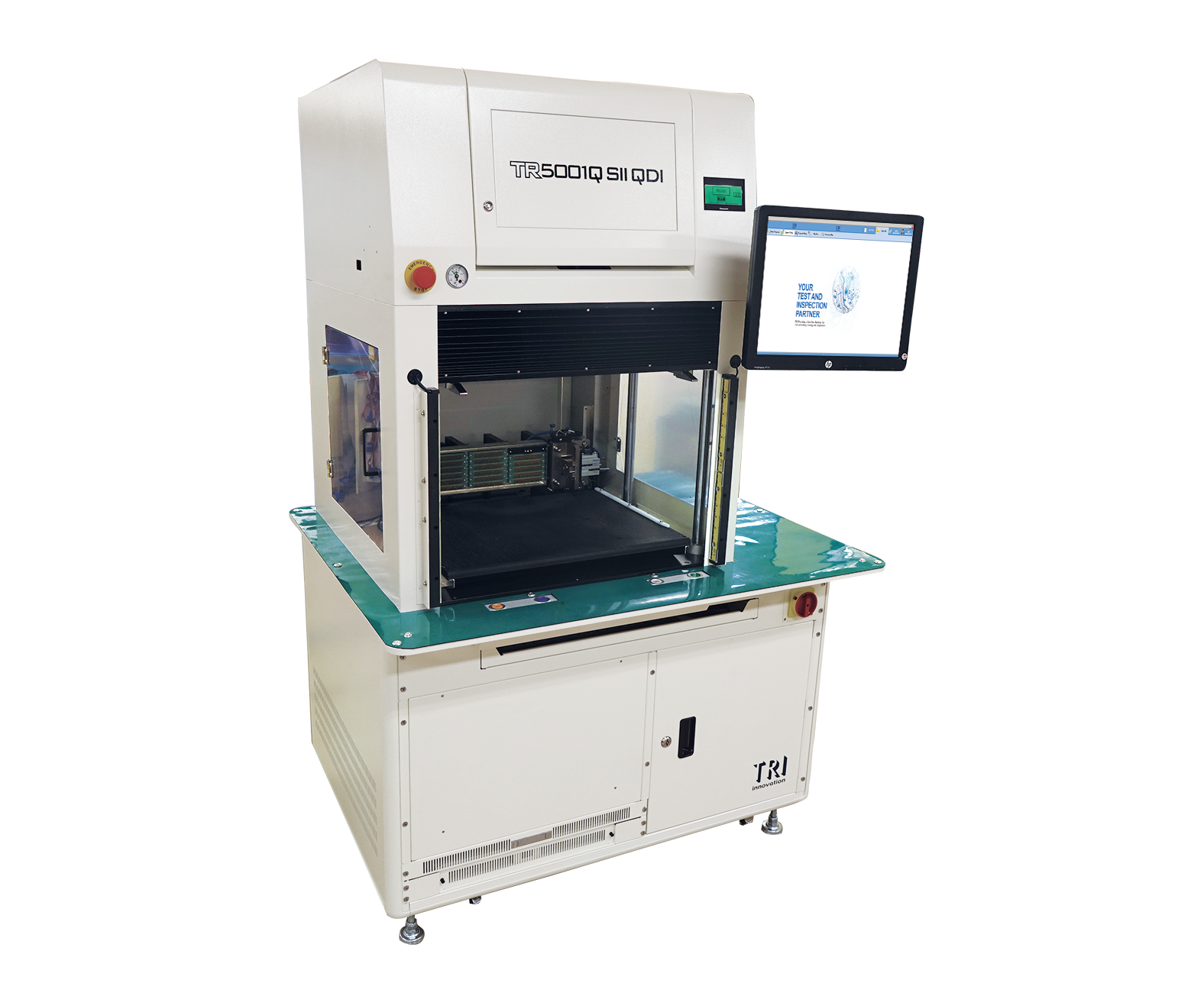

TR5001(D/Q) SII QDI: 1200 x 950 x1850 mm
Note: not including signal tower,signal tower height: 392 mm
|
|
Weight |
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q) SII QDI: 510 kg
|
