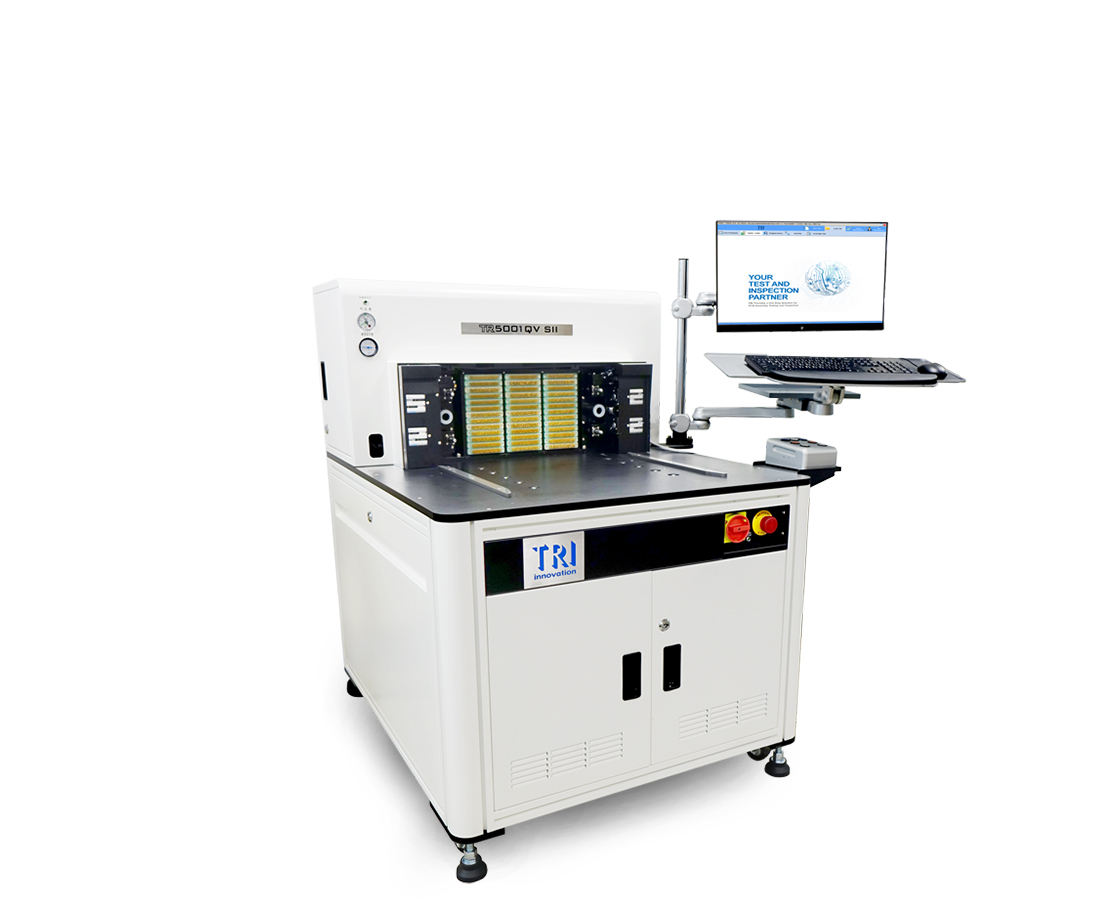

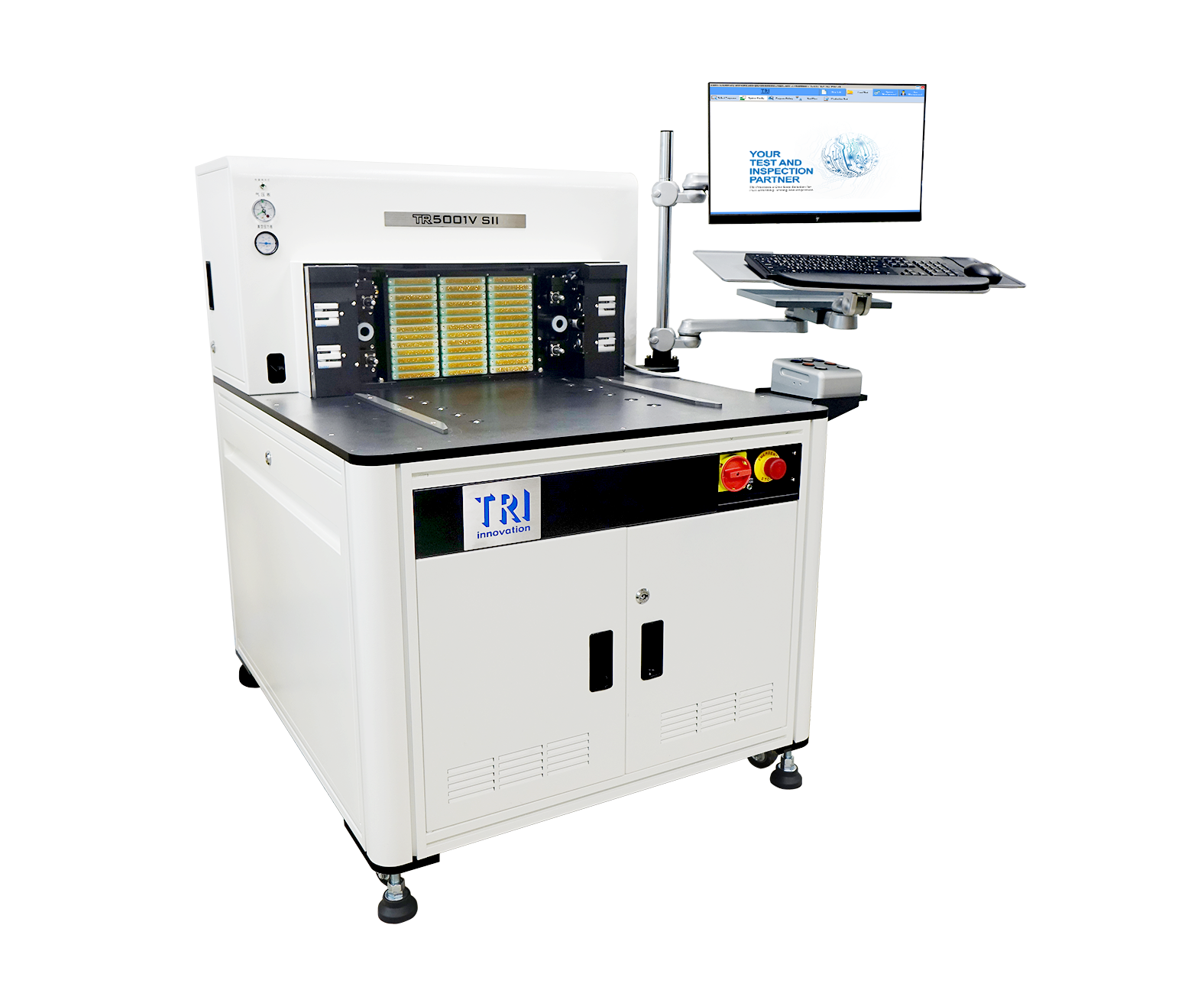

TR5001V SII SERIES
 |
|
|
|
TR5001QV SII
|
|
|
INTRODUCTION
Erstklassige Mehrkern-Parallelvakuum ICT + FCT Lösung. Die TR5001V SII-SERIE bietet bahnbrechende Leistung mit bis zu 4 unabhängigen Kernen für hohen Durchsatz. Durch eine langlebige Schnelltrennschnittstelle sowie eine integrierte automatische Kalibrierung und Selbstdiagnose wird die eine langfristige Zuverlässigkeit der Tests gewährleistet. Die TR5001V SII-SERIE unterstützt die einfache Anwendung der TRIs flussbasierter Smart-Programmiersoftware.
• Mehrkern-Paralleltest
• Zuverlässige Vaccum Fixture Testing
• Non-Multiplexing 1: 1 pro Pin-Architektur
• Skalierbarer MDA zu ICT und Funktionstest
• Hohe Genauigkeit und hoher Durchsatz
• Langlebige Schnelltrennschnittstelle
Tester Specifications
|
Analog/hybrid test points |
TR5001QV SII: 4096
TR5001DV SII: 3328
TR5001V SII: 3456 |
|
Operating System |
Microsoft® Windows compatible PC with USB, Windows 10 |
|
Fixture Type |
Vacuum fixture with Quick Disconnection InterfaceStandard Testing Components |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
|
Optional Components
|
Analog Hardware |
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
Serial Test Controller (STC) Programming
-
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
-
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
-
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
-
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
900 x 1080 x 1336 mm
|
|
Weight |
TR5001QV SII: 370 kg
TR5001DV SII: 350 kg
TR5001V SII: 350 kg |
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
