Automatisierte Optische Inspektion (AOI)
INTRODUCTION

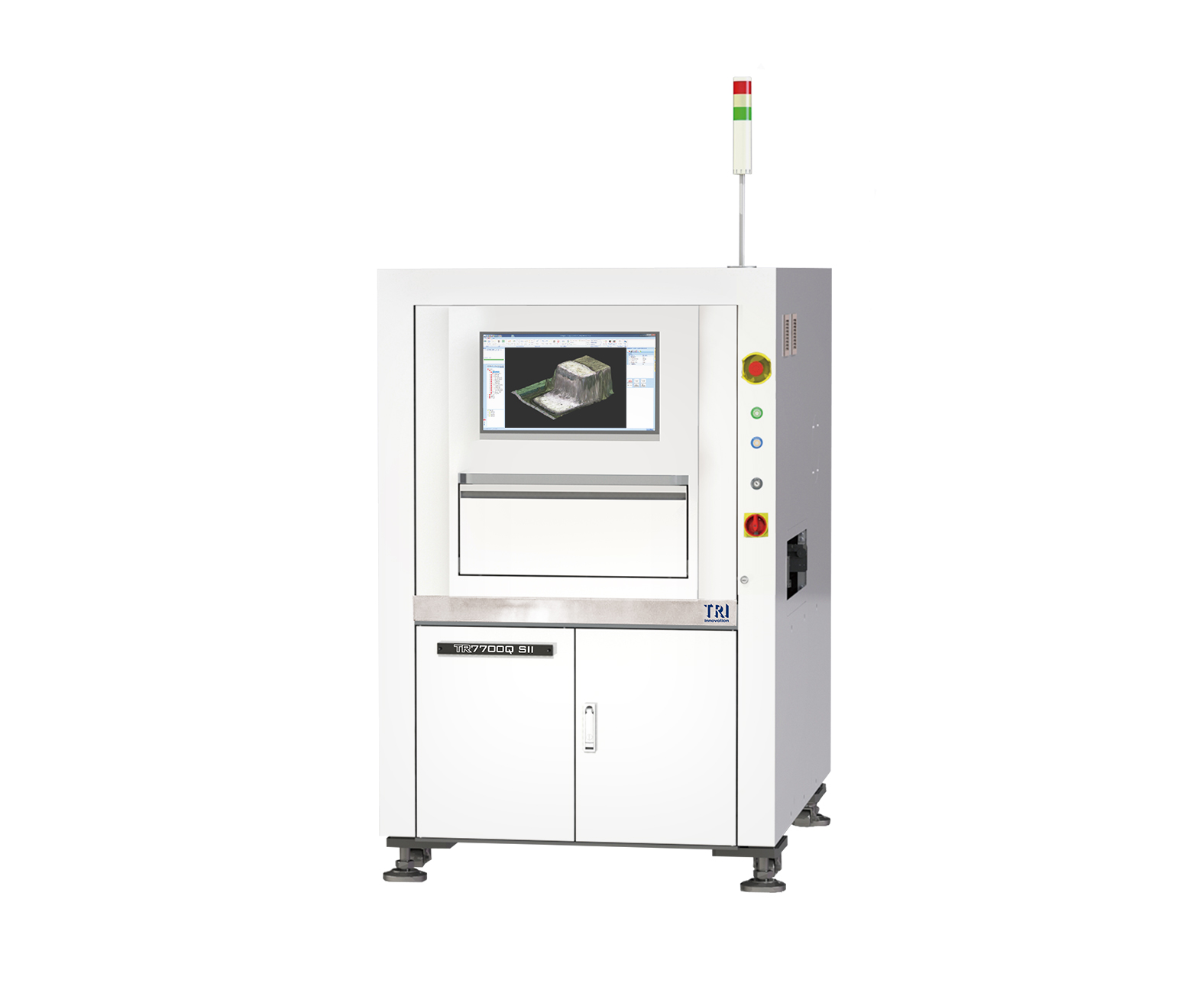

TR7700Q SII ist Smart Programming inklusiv Auto-Learning Funktionen, flexible Prüfalgorithmen, präzise Analyse der Messfähigkeit und Dateneinbindung in die Smart Factory Anwendungen von TRI ausgerüstet. Die fortschrittliche mechanische Stabilität verleiht der TR7700Q SII eine höhere Genauigkeit und eine verbesserte Gauge R&R mit Stop-and-Go-Bildtechnologie.
• Branchenführene Prüfgeschwindigeit, bis 57 zu cm²/sek
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP/21 MP High Speed Camera
Angle Camera
N/A
Imaging Resolution
9.8 µm, 10 µm, 12 µm, 15 µm (factory setting)
Lighting
Multi-phase True Color LED
3D Technology
Quad Digital Fringe Projectors
Max. 3D Range
@ 9.8 μm: 40 mm
Inspection Performance
Imaging Speed
@ 9.8 μm: 40 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller
Y-Axis Control
Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7700Q SII: 510 x 460 mm
PCB Thickness
0.6-5 mm
Max PCB Weight
TR7700Q SII: 3 kg. Optional: 5kg
Top Clearance
@ 9.8 μm: 50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective,
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging,
Dimensions
WxDxH
TR7700Q SII: 1100 x 1720 x 1710 mm
Weight
TR7700Q SII: 910 kg
Imaging System
Camera
X-ray Source
Imaging Resolution
Inspection Method
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Dimensions
WxDxH
Weight
Power Requirement
