INTRODUCTION

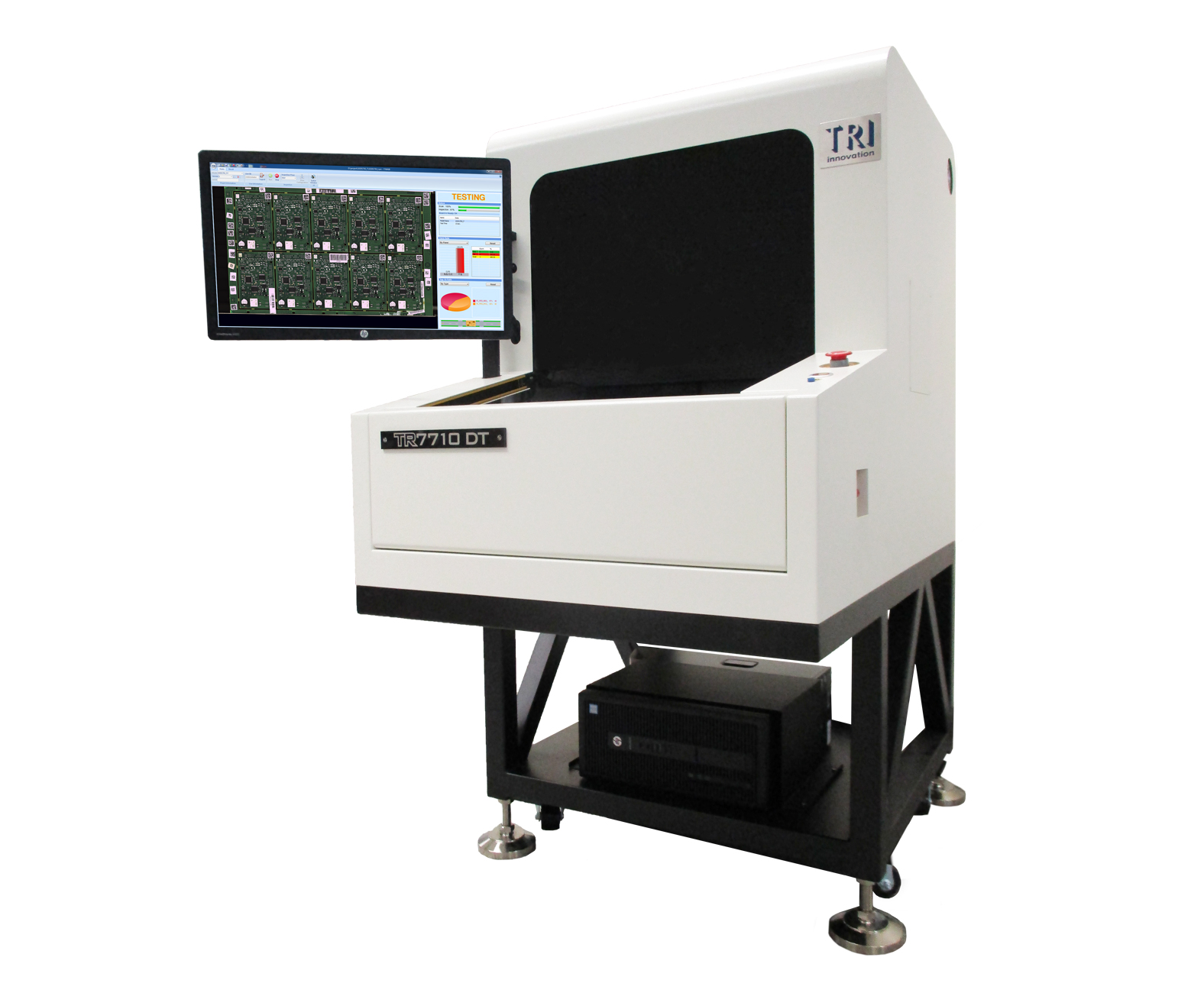

Das System TR7710 DT ist ein wirtschaftliches, flexibles Stop-and-Go AOI-System, das ein präzises hochauflösendes Kamerasystem und TRIs exklusive Multiphasenbeleuchtung kombiniert, um detaillierte Leiterplattenbilder zu erfassen. Die neuartige optische Lösung vergrößert den Tiefenbereich (DOF), für hohe Bauteile optional mit hohem Abstand nach oben. Die weiterentwickelte Inspektionssoftware bietet eine NPI-optimierte Programmierschnittstelle mit einer exzellenten Erkennungsrate. Mit der einfachen, intelligenten, CAD-basierten Programmierung stellt das System TR7710 DT eine kostengünstige, anpassungsfähige AOI-Lösung für jede Investitionsgröße dar.
• Wirtschaftliches und flexibles AOI-Tischsystem
• Highspeed 6,5 Mpix Colorkamera
• NPI-optimierte einfache Programmierung über Programmierschnittstellen-Wizard
• Stop-and-Go-Inspektion mit großer Feldtiefe (DOF)
• 10 µm oder 12,5 µm optische Auflösung
Optical System
Imaging Method |
|
Camera |
|
Imaging Resolution |
|
Lighting |
|
3D Technology |
|
Field of View |
|
Inspection Performance
Imaging Speed |
|
Height Resolution |
|
Max. Solder Height |
|
Motion Table & Control
X-Axis Control |
|
Y-Axis Control |
|
Z-Axis Control |
|
X-Y Axis Resolution |
|
Z-Axis Resolution |
|
Board Handling
Max PCB Size |
|
PCB Thickness |
|
Max PCB Weight |
|
Top Clearance |
|
Bottom Clearance |
|
Edge Clearance |
|
Conveyor Height |
|
Optical System
Imaging Method |
Stop-and-Go Imaging |
Top Camera |
6.5 Mpix |
Angle Camera |
N/A |
Imaging Resolution |
10 µm, 12.5 µm (factory setting) |
Lighting |
Multi-phase RGB+W LED |
3D Technology |
N/A |
Max. 3D Range |
N/A |
Inspection Performance
Imaging Speed |
6.5 Mpix@ 10 µm: 22 cm²/sec 6.5 Mpix@ 12.5 µm: 35 cm²/sec
|
Motion Table & Control
X-Axis Control |
Ballscrew + AC-servo controller |
Y-Axis Control |
Ballscrew + AC-servo controller |
Z-Axis Control |
N/A |
X-Y Axis Resolution |
1 µm |
Board Handling
Max PCB Size |

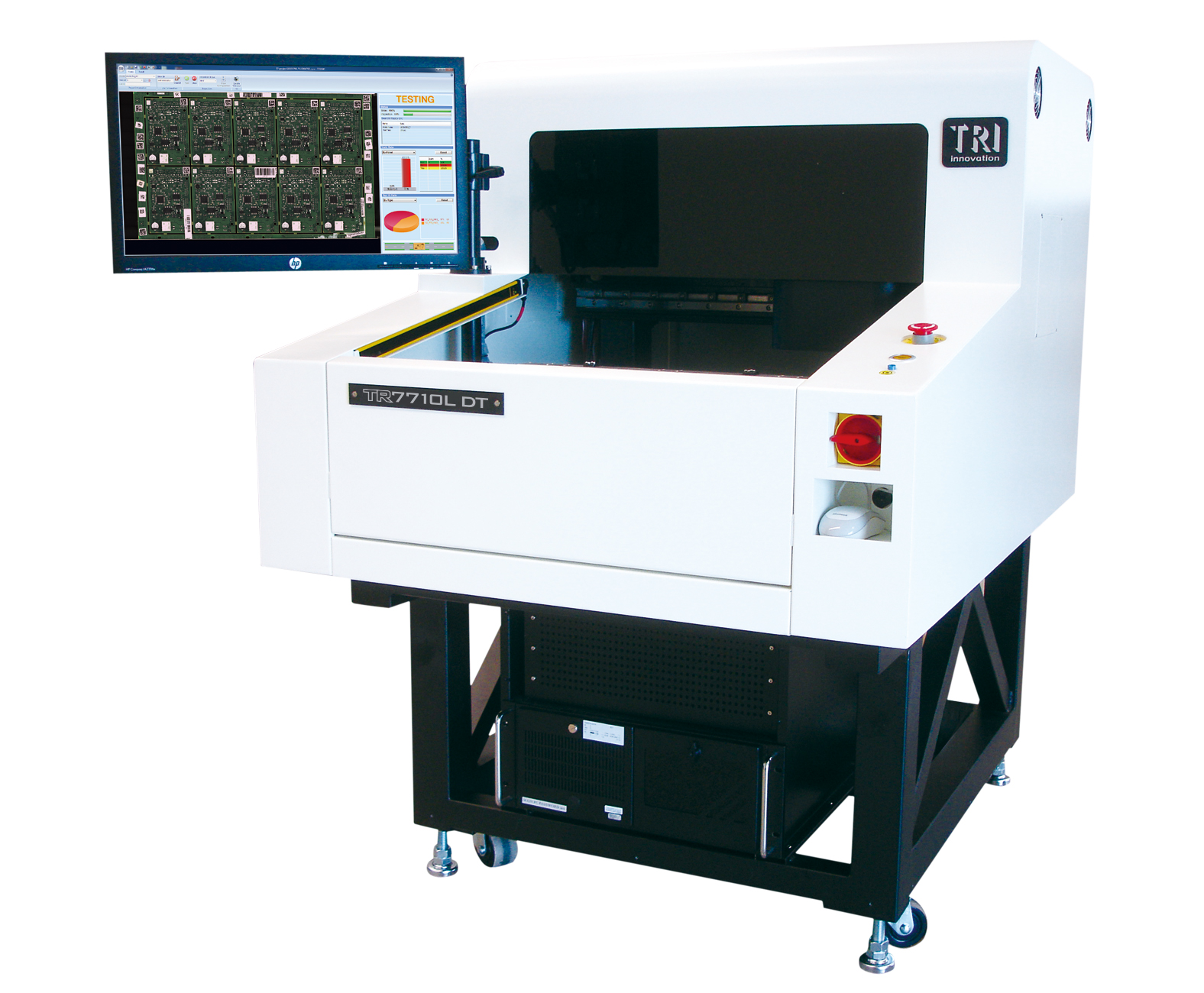

TR7710 DT: 330 x 250 mm TR7710L DT: 510 x 460 mm
|
PCB Thickness |
3 mm |
Max PCB Weight |
3 kg |
Top Clearance |
25 mm |
Bottom Clearance |
100 mm |
Edge Clearance |
3 mm |
Conveyor |
Manual |
Inspection Functions
Component |
Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material
|
Solder |
Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination
|
Dimensions
WxDxH |
TR7710 DT: 800 x 1100 x 1480 mm TR7710L DT: 970 x 1295 x 1465 mm
|
Weight |
TR7710 DT: 340 kg TR7710L DT: 380 kg
|
