產品介紹

組裝電路板測試機(ICT)

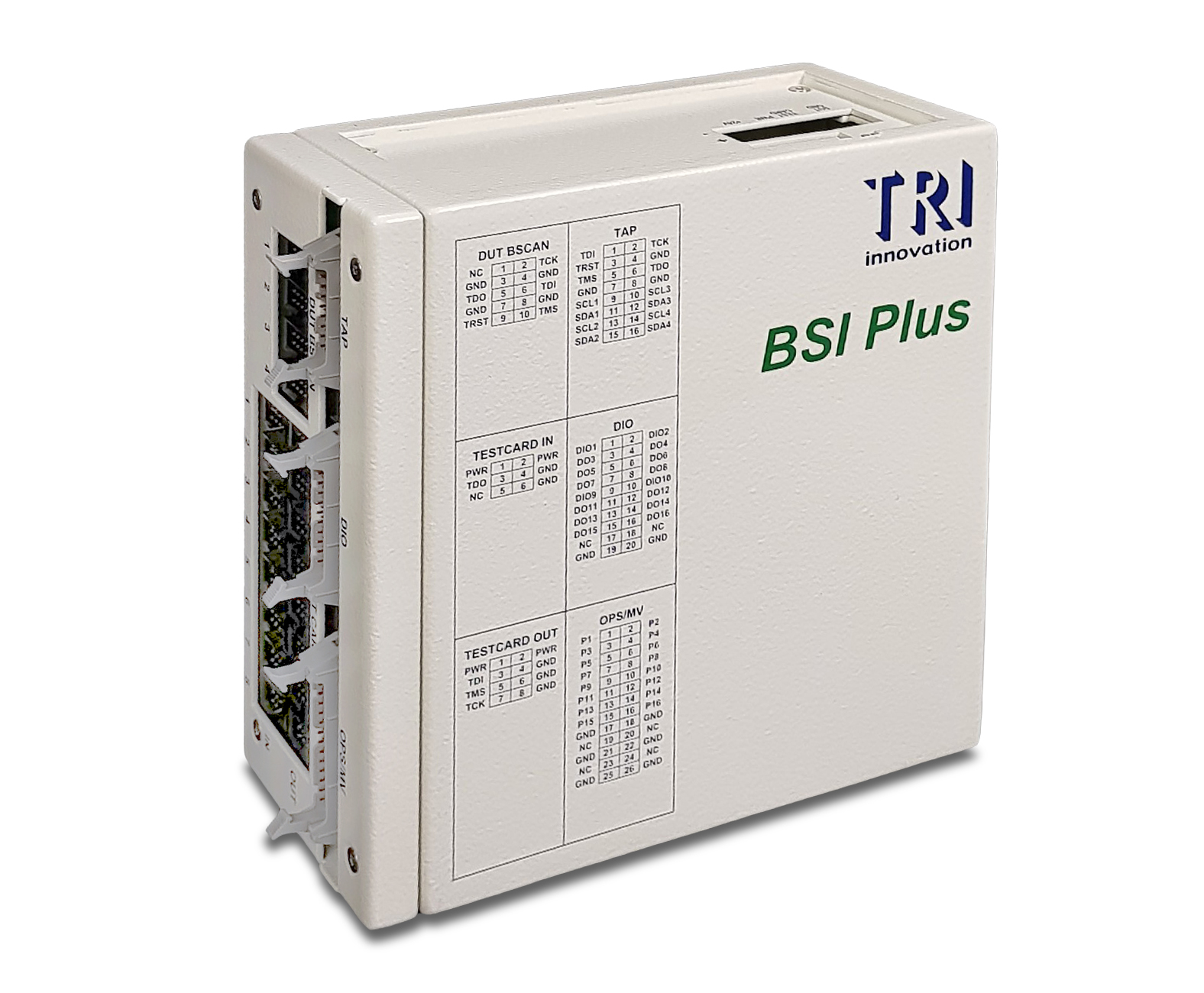

BSI Plus

INTRODUCTION

TRI邊界掃描鏈路測試儀─BSI Plus（邊界掃描互連測試），適用於各種連接器，例如DDR4，USB，PCIe和M.2 SATA。 BSI Plus測試儀具易於編程並可與治具整合的特色，此外，在DUT上電前即可進行OPS測試和電池測試，以確保組裝電路板的生產良率。

• 邊界掃描互連鏈路測試適用於各種連接器
• 易於整合BSI硬體和治具PLC控制命令編輯
• 使用自動測試程序生成器進行智能編程

General

Operating System	Microsoft^® Windows 10
Power Requirement	240 V, Single Phase, 50/60 Hz, 240 W

Hardware

DUT BSCAN	4 channel JTAG Output voltage adjustable from 0 to 5 V
TEST CARD	8 channel fixed 3.3 V JTAG Out taps connect to test card’s TDI In taps connect to test card’s TDO
Digital I/O Control Pins	16 pins (DIO x 4 pins, DO x 12 pins) DIO is 0~5 V in-out pins / DO is 0 ~ 5V output pins
OPS/MV	16 channel voltage and open-short measurement 0~50 V 0~100 ohm
Vreg Test	32 Channels (Max. 128 Channels)
I2C Function	4 channels

Supported Test Card — Boundary Scan / Open/short test

Simulated Test Cards

DDR4
USB
PCIe
M.2 SATA

Dimensions

WxDxH	180 x 180 x 80 mm
Weight	5 kg
