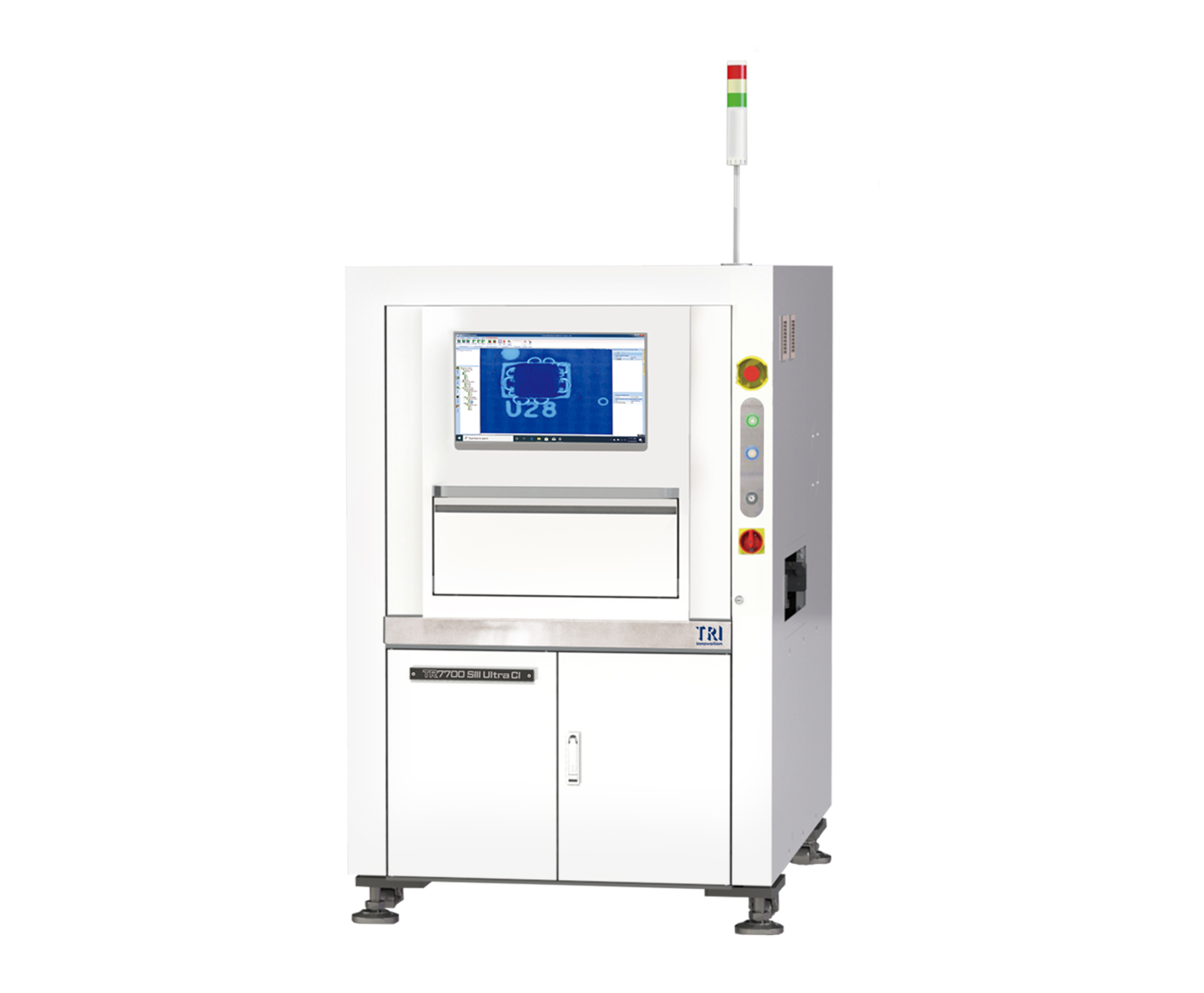

TR7700 SIII Ultra CI

INTRODUCTION

The TR7700 SIII Ultra CI is a cutting-edge Conformal Coating Inspection with improved optical design and specialized multi-phase lighting for detecting coating issues, and can measure coating thickness and inspect dispensed flux and glue. The TR7700 SIII Ultra CI is a powerful tool for manufacturers looking to optimize their production's yield rate and enable the Connected Factory.

• Conformal Coating Inspection Solution for Multiple Applications
• Smart Programming with Coating Area Auto Learning Functionality
• High Precision Coating Thickness Measurement with Laser Sensor*
• Industry Leading High Throughput, High Speed Inspection
• Flux and Glue Inspection Capabilities
• Smart Factory Ready with Real-time SPC Trends

*Optional

Optical System

Imaging Method	Dynamic Imaging
Top Camera	4 Mpix
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase RGB+W+UV LED

Imaging Performance

Imaging Speed

@10 µm 2D: 60 cm²/sec
@15 µm 2D: 120 cm²/sec
@10 µm 2D+3D: 27 – 39 cm²/sec
@15 µm 2D+3D: 40 – 60 cm²/sec

Motion Table & Control

X-Y-Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y-Z Axis Resolution	1 µm

Board Handling

Max PCB Size	500 x 460 mm
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg. Optional: 5 kg
Top Clearance	25 mm. Optional: 50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm. Optional: 5 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component Defects	Missing Tombstoning Billboarding, Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component
Solder Joint Defects	Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch / Contamination
Conformal Coating	Missing Coating Insufficient Coating Crack Bubble Splash Contamination Spill Coating Thickness Glue Height (3D Laser)

Dimensions

WxDxH	1100 x 1720 x 1710 mm Note: not including signal tower, signal tower height 515 mm
Weight	940 kg
