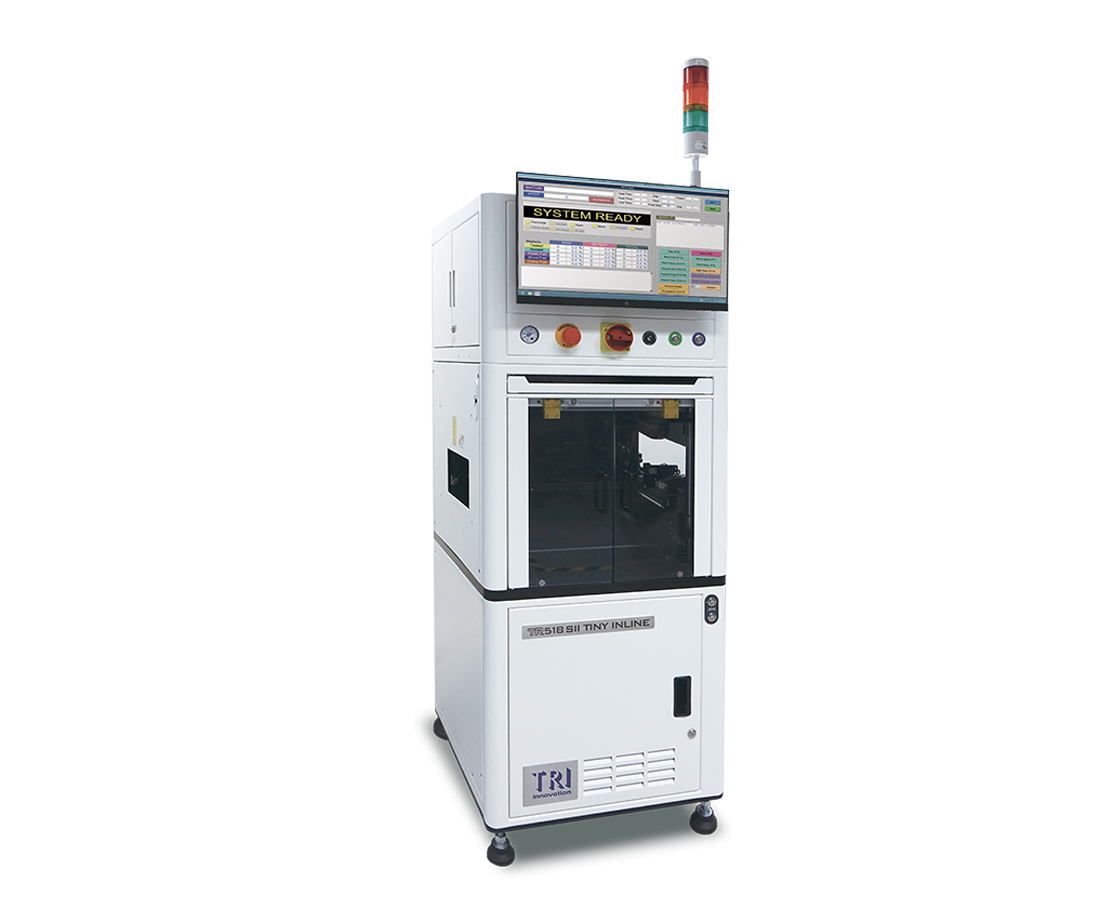

TR518 SII INLINE


TR518 SII INLINE

INTRODUCTION

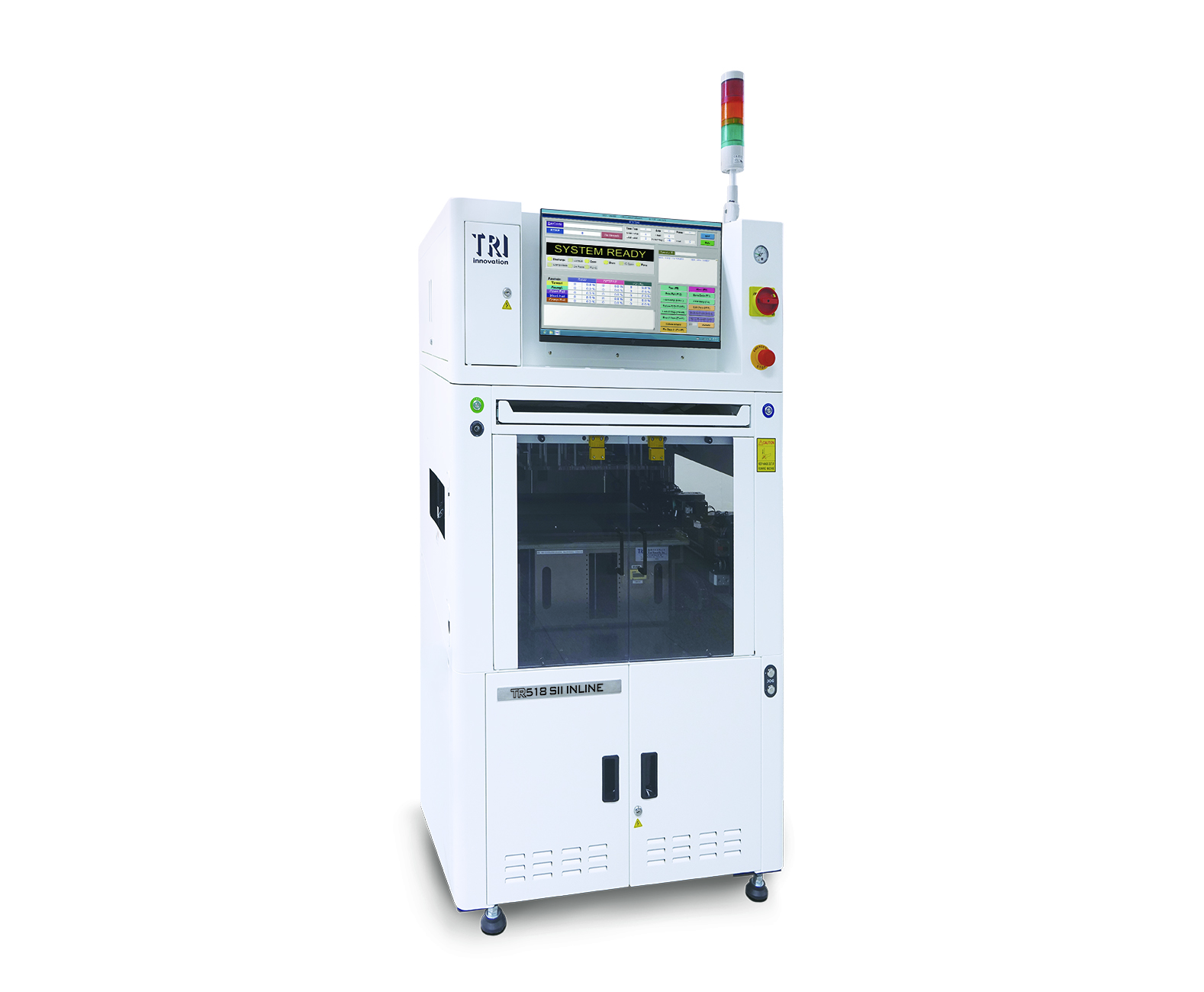

Der TR518 SII INLINE ist eine kostengünstige, flexible und gleichzeitig automatisierte Testplattform für MDA-Tests auf mittelgroßen Platinen mit bis zu 1024 Testpunkten. Die vollelektrische SMEMA-kompatible Plattform verfügt über einen minimalen Platzbedarf und bietet vollständige TR518 SII MDA-Fähigkeit.

• Voll ausgestattete Inline-Testplattform
• Ausgelegt für TRI MDA-Tester
• Minimaler Platzbedarf durch SMEMA-Integration
• Vollständig elektrisches Design ohne Druckluft
• Bis zu 1024 analoge MDA-Testpunkte

Tester Specifications

Analog Test Points	1024 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Analog Testing

Analog Test Hardware

6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
Component R/L/C measurement

Optional Components

Analog Hardware	TestJet vectorless open circuit detection Programmable High Voltage DC Source up to 100V / 100 mA
Yield Management System	YMS 4.0

Board Handling

Min. PCB Size	70 x 70 mm
Max. PCB Size	330 x 250 mm
PCB Thickness	0.6 ~ 5 mm

Dimensions

WxDxH	600 x 900 x 1595 mm Note: not including signal tower, height: 515 mm
Weight	340 kg
