INTRODUCTION

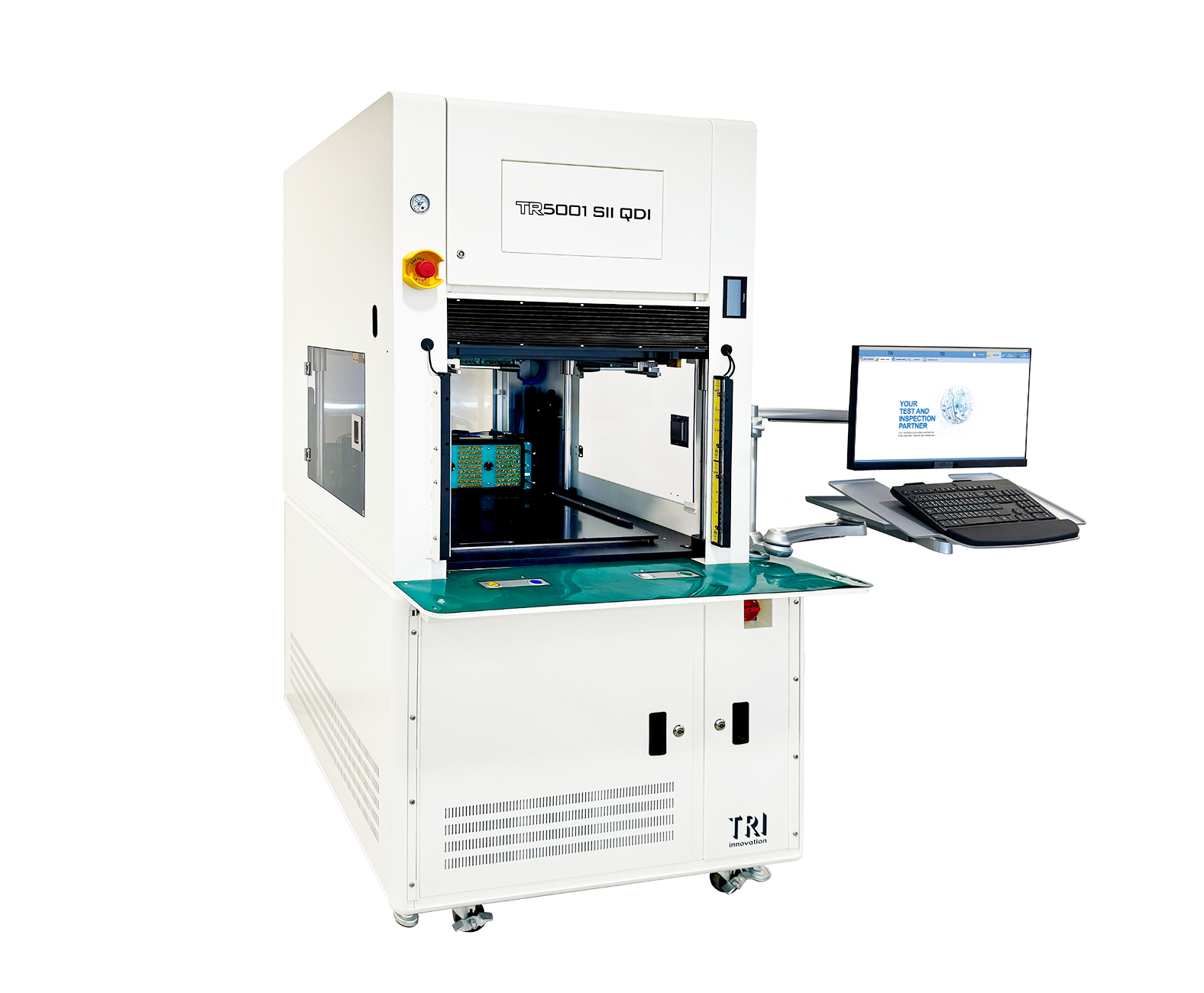

Die neueste Generation von TRI's ICT+FCT Lösung bietet eine bahnbrechende Leistungsfähigkeit beim Multi-Core Parallel-Test mit bis zu 4 voneinander unabhängigen Cores für hohen Durchsatz. Das modernste manuelle Handlingssystem von TRI hat ein praxiserprobtes Sicherheitsdesign, bei dem die Hände frei bleiben und das unterbrechungsfreien Betrieb des Systems gewährleistet. Bei TR5001Q/D SII QDI sorgt das langlebige Quick Disconnect Interface und die eingebaute Auto-Kalibrierung mit Selbstdiagnose langfristig für zuverlässiges Testen.
• Flexibler Multi-Core Parallel Tester der neuen Generation
• Serieller Test Controller nach dem neuesten Stand der Technik mit bis zu 8 Ports an jedem Pin
• Praxiserprobte Testplattform, für maximale Bedienersicherheit ohne mit der Hand einzugreifen
• Limitierter Zugriff und funktionelle Testerweiterung über PXI-Module
• Eingebaute Selbst-Diagnose- und Auto-Kalibrierungsfunktion
• Messung und Test mit hoher Genauigkeit
• Intuitive Bedienerführung mit einfacher ablauforientierter Programmentwicklung
• Langlebiges Quick Disconnect Interface
Tester Specifications
Analog/hybrid test points
TR5001Q SII QDI: 4096
TR5001D SII QDI: 3328
TR5001 SII QDI: 3456
Operating System
Microsoft® Windows compatible PC with USB, Windows 7-10
Fixture Type
Offline press type fixture with QDI
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Dimensions
WxDxH
1200 x 950 x 1850 mm
Weight
700 kg
