INTRODUCTION

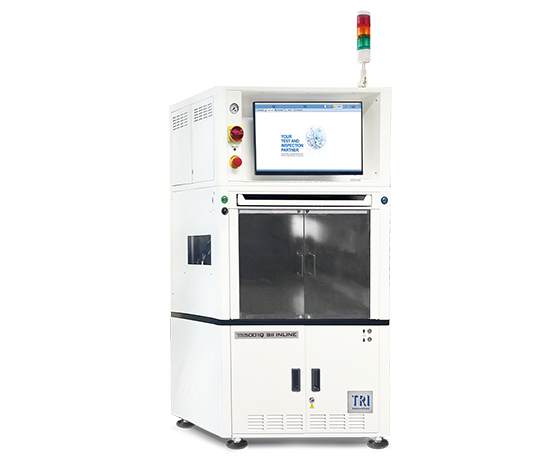

Die neueste Generation von TRI's Parallel-Inline ICT+FCT Lösung bietet eine bahnbrechende Leistungsfähigkeit beim Multi-Core Parallel-Test mit bis zu 4 voneinander unabhängigen Cores für hohen Durchsatz. Ein SMEMA-kompatibles Inline-Handlingsystem reduziert den Arbeitsaufwand des Bedieners und erhöht den Durchsatz und ein langlebiges Quick Disconnect Interface sorgt in Verbindung mit der integrierten Auto-Kalibrierung und Selbstdiagnose langfristig für zuverlässiges Testen.
• Flexibler Multi-Core Parallel Tester der neuen Generation
• Serieller Test Controller nach dem neuesten Stand der Technik mit bis zu 8 Ports an jedem Pin
• Limitierter Zugriff und funktionelle Testerweiterung über PXI-Module
• Eingebaute Selbst-Diagnose- und Auto-Kalibrierungsfunktion
• Messung und Test mit hoher Genauigkeit
• SMEMA-kompatible Inline-Testlösung für breites Fehlerspektrum
• Intuitive Bedienerführung mit einfacher ablauforientierter Programmentwicklung
Tester Specifications
Analog/hybrid test points
TR5001Q(L) SII INLINE: 4096
TR5001D(L) SII INLINE: 3328
TR5001(L) SII INLINE: 3456
Operating System
Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
Optional Components
Analog Hardware
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Digital Testing
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
Serial Test Controller (STC) Programming
DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A
DPS Programmable DUT Power supply :
(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
Up to 8 High Speed Serial Ports, On-board Flash, EEPROM, MAC programming
Yield Management System
YMS 4.0
Board Handling
Min. PCB Size
70 x 70 mm
Max. PCB Size
TR5001(D/Q) SII INLINE:500 x 360 mm
TR5001(D/Q)L SII INLINE: 510 x 510 mm
PCB Thickness
0.6 - 5 mm
Dimensions
WxDxH
TR5001(D/Q) SII INLINE: 900 x 1080 x 1660 mm
TR5001(D/Q)L SII INLINE: 1000 x 1230 x1676 mm
Note: not including signal tower,signal tower height: 390 mm
Weight
TR5001(D/Q) SII INLINE: 670 kg
TR5001(D/Q)L SII INLINE: 720 kg
