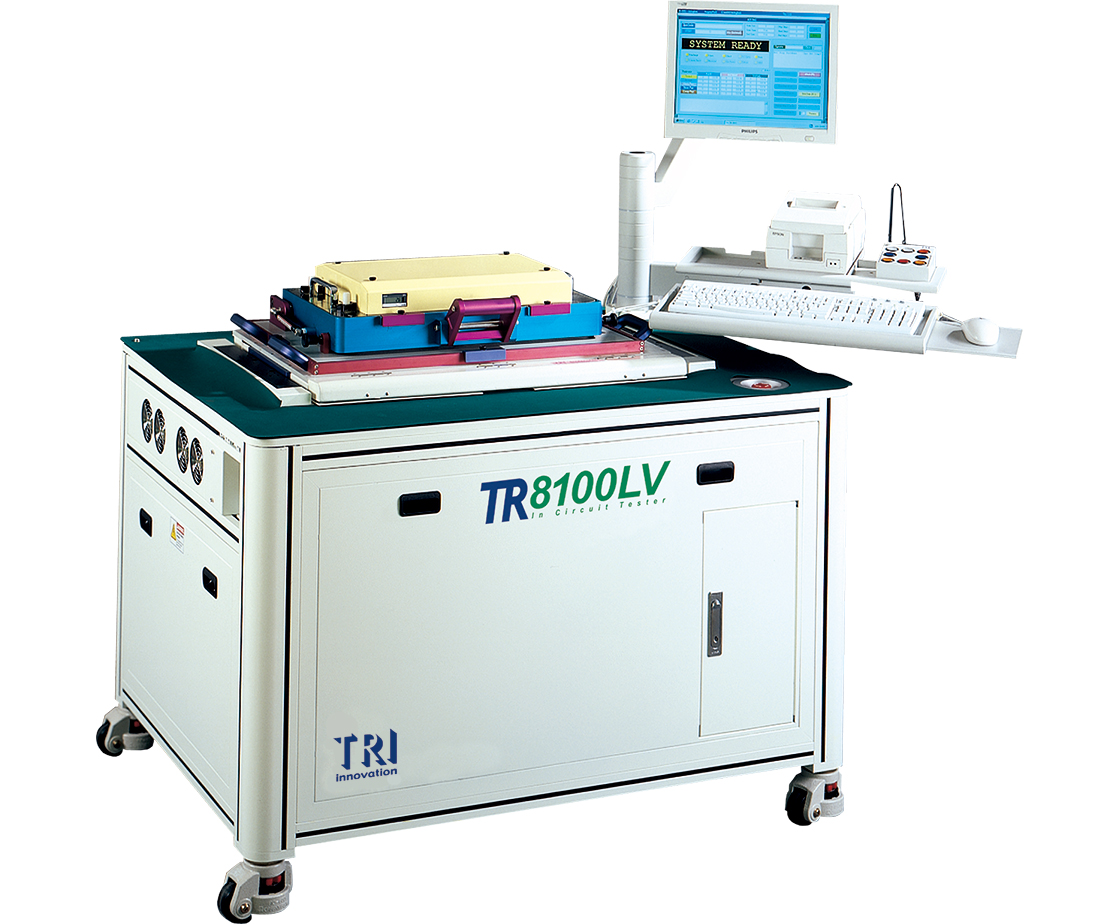

TR8100LV
 |
|
|
|
TR8100LV
|
|
|
INTRODUCTION
Entwickelt für das Testen großer und komplexer Platinen zielt das TR8100LV TRI Top-of-the-Line-Board-Test-System auf den Niederspannungs-Testmarkt. TR8100LVs Vakuumsystem sorgt für vollen Stiftkontakt und mit bis zu 3584 poligen Digital-MUX freier Architektur erlaubt das System schnellere und einfachere Prüfung von großen Pin-Count-Geräten und schnelle Programmentwicklung. *TRI ToggleScan® ＆ "VregTest® Technologie kombiniert Boundary Scans mit Lösungen für begrenzten Testzugangsvorgänge. *"ToggleScan®" & "VregTest®" ist ein eingetragendes Warenzeichen von Test Research, Inc.
-
• Digital 1:1 driver/receiver per pin architecture design
• Testlösung für hohe Fehlerabdeckung mit Vacuum-Aufnahme
• Niederspannungsgerätetests und hohe Testgeschwindigkeit
• Freundliche Benutzeroberfläche mit schneller und einfacher Programmentwicklung
Tester Specifications
|
Analog/hybrid test points |
TR8100LV: 3584
TR8100LLV: 5632 |
|
Operating System |
Microsoft® Windows compatible PC, Windows 10 |
|
Fixture Type |
Offline press or vacuum type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement, frequency
-
Component R/L/C measurement
-
Synthesized Arbitrary Waveform Generator
-
TestJet vectorless open circuit detection
|
|
Digital Testing |
-
Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
-
DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
-
On-board Flash, EEPROM, MAC programming
|
Optional Components
|
Analog Hardware |
Fixture Conversion Kits for Teradyne, GenRad |
|
Digital Testing |
-
Programmable DUT power supplies: 75 V / 8 A, 200W maximum output power
-
Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
|
|
Yield Management System |
YMS 4.0 |
Dimensions
|
WxDxH |
TR8100LV: 1150 x 850 x 800 mm
TR8100LLV: 1550 x 850 x 800 mm |
|
Weight |
TR8100LV: 390 kg
TR8100LLV: 450 kg |
