INTRODUCTION

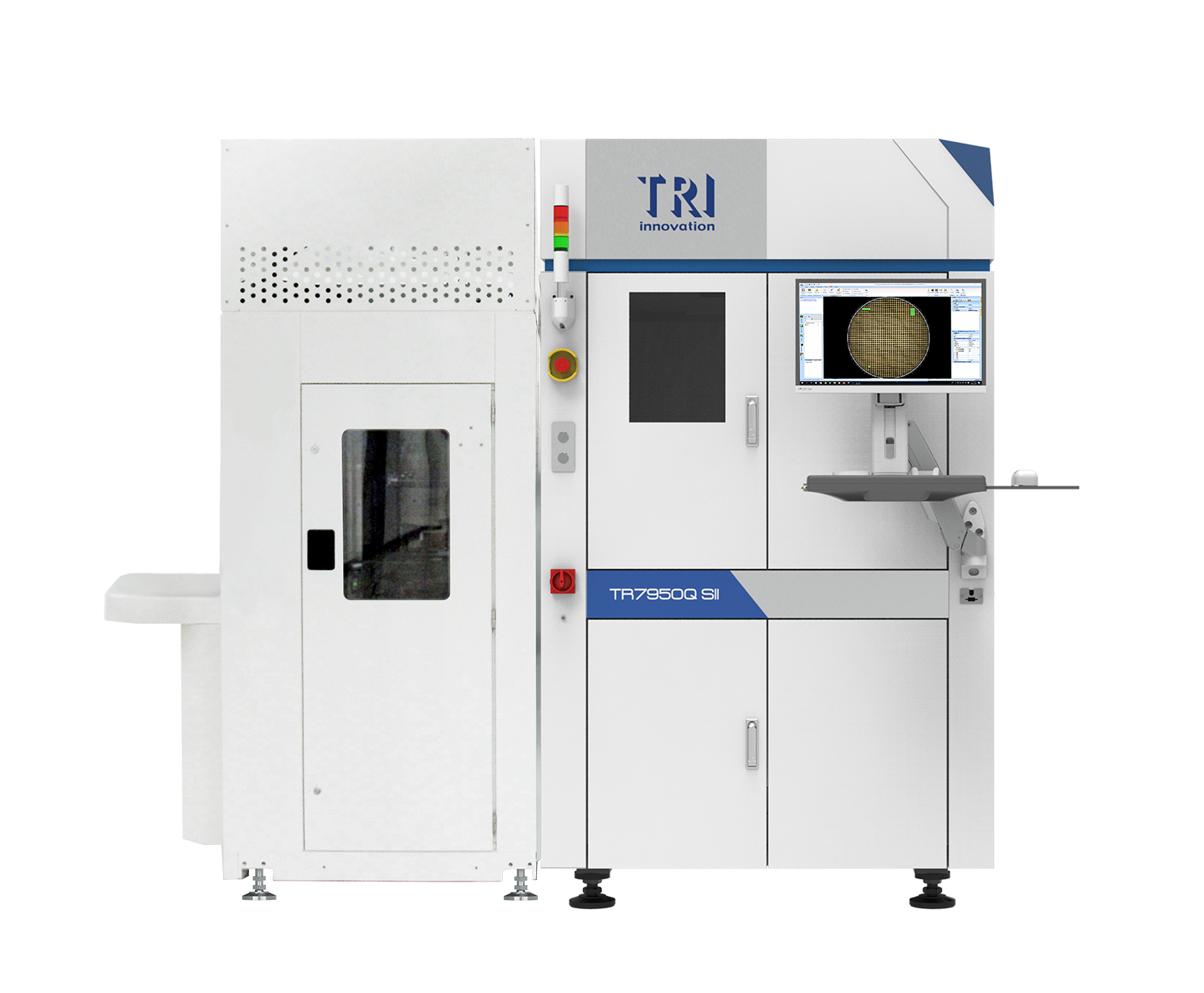

The TR7950Q SII Series is a highly modular Wafer Inspection and Micro Measurement Metrology platform that utilizes AI-driven algorithms to maximize production yields in advanced semiconductor manufacturing. This highly modular system features an optional SWIR (Short-Wave Infrared) module specifically designed to detect hidden inner cracks and subsurface defects that remain invisible to standard visible light sensors. Inspection & Metrology for: Advanced WLP, Wafer Frame, Patterned Wafer, Wafer Bumping, WLCSP, Wafer Thickness, Topology, Film Thin, through-silicon via (TSV).
*Optional
• High Resolution Wafer Inspection
• Precise Micro Measurements with Metrology Capabilities
• Ultra-High-Speed TSV & Thin-Film Metrology
• Inner Defect Detection with SWIR (Short-Wave Infrared) Module*
• 0.5/1 μm Resolution Available through DFF (Depth From Focus) Module*
• Cleanroom: Class 100 - ISO 5 Clean Room
• TSV measurement capabilities: Sensing TSV depth, Trench depth
• Thin Film measurement capabilities: Oxide, Nitride, PR, PI film thickness
*Optional
Optical System
|
Imaging Method |
Stop-and-Go Imaging |
|
Camera |
25 Mpix |
|
Optical Resolution |
2.5 µm |
|
Lighting |
Multi-phase True Color LED, Coaxial Lighting |
|
3D Technology |
Quad Digital Fringe Projectors |
|
Max. 3D Height |
600 μm |
Wafer and Frame Handling
|
Wafer |
6", 8", 12" |
|
Frame |
8", 12" |
Clean Room
|
Clean Room Class |
ISO Class 5 (ISO 14644-1) |
Motion Table & Control
|
X Axis Control |
Linear Motor with Motion Controller + Air Bearing or Linear Guide |
|
Y Axis Control |
Linear Motor with Motion Controller + Air Bearing or Linear Guide |
|
Z Axis Control |
Ball Screw + Linear Guide + AC Servo Motor with Motion Controller or
Linear Guide + Linear Motor with Motion Controller
|
|
X-Y Axis Resolution |
0.1 µm |
Inspection and Metrology Functions
|
Patterned Wafer |
Residues, Crack, Scratch, Particle, Pad Abnormal, Discolor, Contamination, Peeling, Probe Mark Defect, CD Measurement
|
|
Bump Wafer |
2D Bump Size, 3D Bump Height, Bump Defect, Foreign Material,
CD Measurement
|
|
Wafer Frame |
Chipping, Crack, Scratch, Particle, Contamination, CD Measurement,
Saw 3D metrology |
|
Wafer Topology |
Wafer Thickness, Top-side Warpage |
|
TSV |
Sensing TSV depth, Trench depth |
|
Thin Film |
Oxide, Nitride, PR, PI film thickness |
Optional Features
|
Sensing Technologies* |
3D DFF Module (0.55 or 1 μm), SWIR Module (1, 2 or 4 μm), CSS Module, TSV/Thin Film Module |
|
TSV/ Thin Film Module |
Spot Size: 50μm, 25 μm. TSV aspect ratio: Max. 30:1. Via diameter: 3~20 μm.
Film thickness range: 100 nm ~ 30 μm
|
Dimensions
|
WxDxH |
1235 x 2590 x 2050 mm
Note: Dimensions change according to EFEM |
|
Weight** |
2300 kg |
|
* You may install either DFF or SWIR, and they are compatible with the TSV/Thin Film and CSS modules.
** Without EFEM Module
|
