Inspección por rayos X automatizada (AXI)

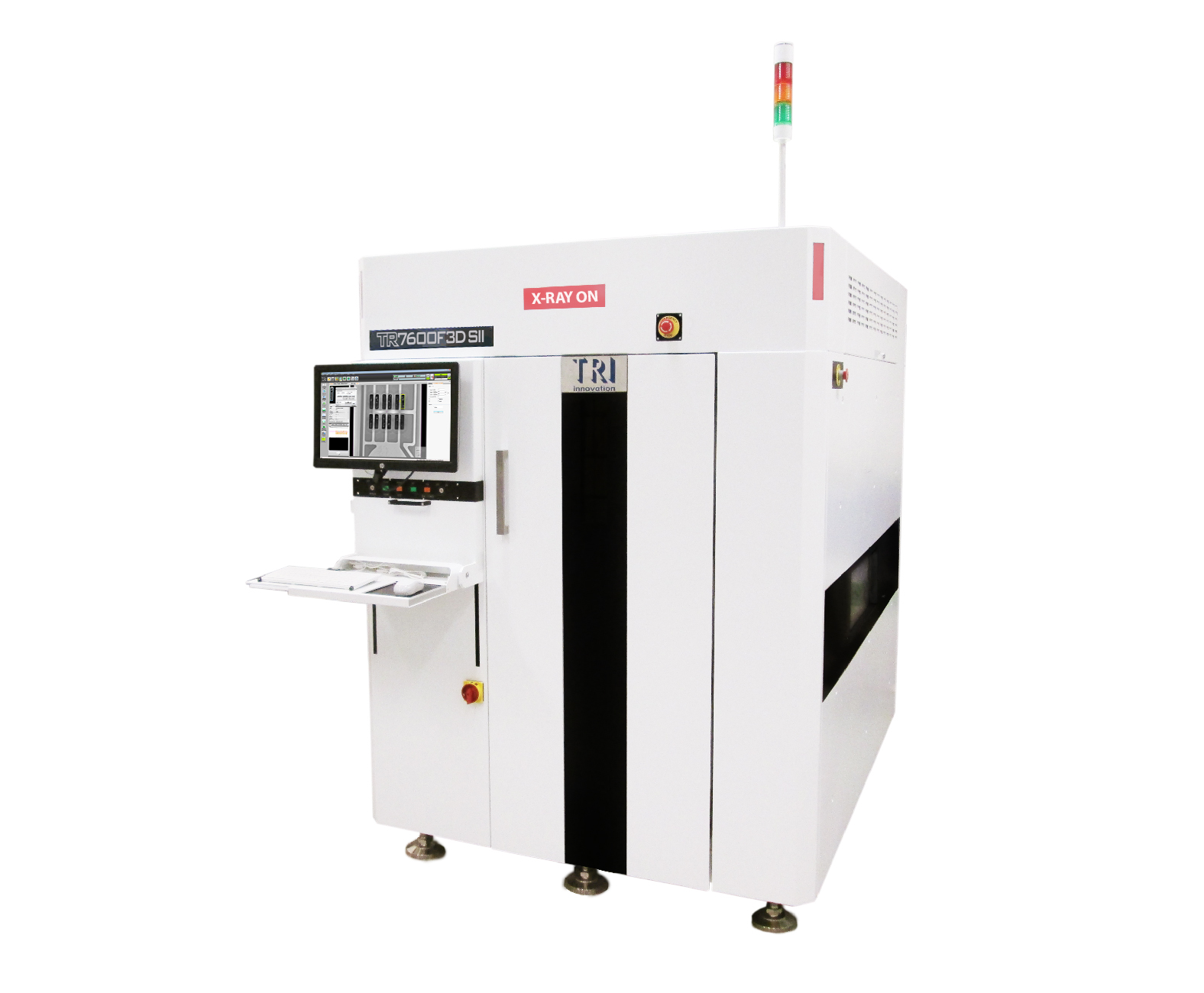

TR7600F3D SII

INTRODUCTION

El TR7600F3D SII es la nueva solución de inspección por rayos X automatizada en línea de alta velocidad, hasta tres veces más rápido que el modelo anterior. La solución AXI puede inspeccionar placas grandes, hasta 900 mm x 460 mm. El TR7600F3D SII reduce los escapes y las llamadas falsas sin comprometer el tiempo de ciclo de la línea de producción.

• Alta precisión de 5 µm para alta cobertura de defectos

• Diseño mecánico de próxima generación para velocidades más altas de hasta 10 FOV/s

• Maquina Inteligente con facilidad a conexión a MES

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range

Inspection Performance

Imaging Speed

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor

Inspection Functions

Component
Solder

Dimensions

WxDxH
Weight

Imaging System

Camera	Flat Panel Detector
X-ray Source	130 kV(User Adjustable)
Imaging Resolution	5 μm ,10 μm, 15 μm, 20 μm, 25 μm, 30 μm
Inspection Method	2D, 2.5D, 3D Slicing, Planar CT (Optional)

Motion Table & Control

X-Axis Control	High-Precision Ballscrew + AC-Servo Controller
Y-Axis Control	High-Precision Ballscrew + AC-Servo Controller
Z-Axis Control	High-Precision Ballscrew + AC-Servo Controller
X-Y Axis Resolution	N/A

Board Handling

Max PCB Size	TR7600F3D SII: 900 x 460 mm TR7600F3D LL SII: 1000 x 660 mm Note: The Max. PCB Size will vary depending on the angle of incidence
PCB Thickness	TR7600F3D SII: 0.6 - 7 mm TR7600F3D LL SII: 0.4 - 7 mm
Max PCB Weight	12 kg
Top Clearance	@ 20/25/30 μm: 50 mm @ 15 μm: 45 mm @ 10 μm: 25 mm @ 5 μm: 5 mm
Bottom Clearance	@ 30 μm: 55 mm @ 5/10/15/20/25 μm: 70 mm
Edge Clearance	3 mm or 5 mm
Conveyor Height	880 - 920 mm * SMEMA Compatible

Inspection Functions

Capabilities	Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects	Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead

Dimensions

WxDxH	TR7600F3D SII: 1470 x 1971 x 1974 mm TR7600F3D LL SII: 1730 x 2300 x 1975 mm Note: not including signal tower, height: 502 mm
Weight	TR7600F3D SII: 3850 kg TR7600F3D LL SII: 4850 kg
Power Requirement	200 - 240 VAC single phase, 50/60 Hz, 4 kVA
