Inspección óptica automatizada (AOI)
|
INTRODUCTION

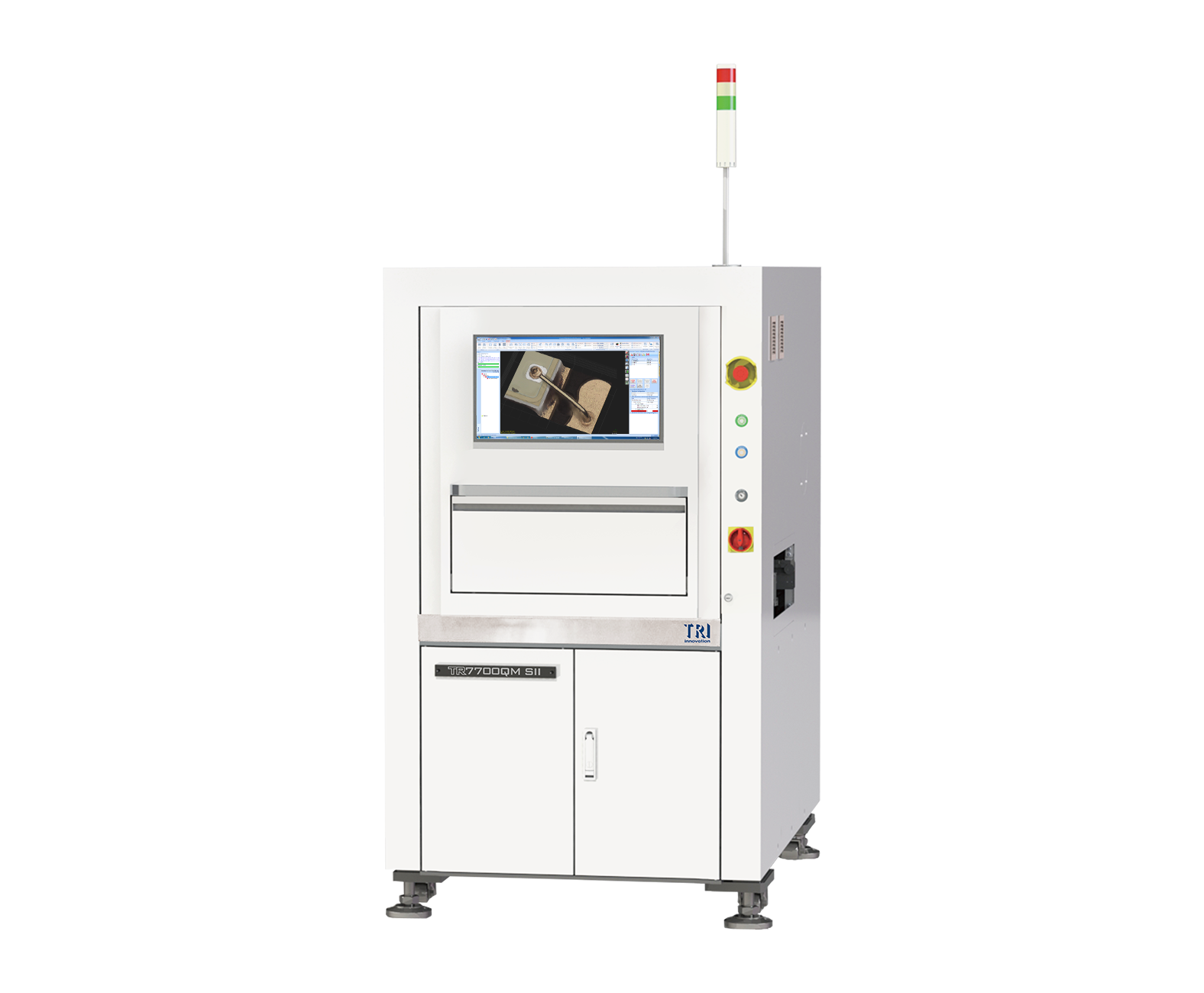

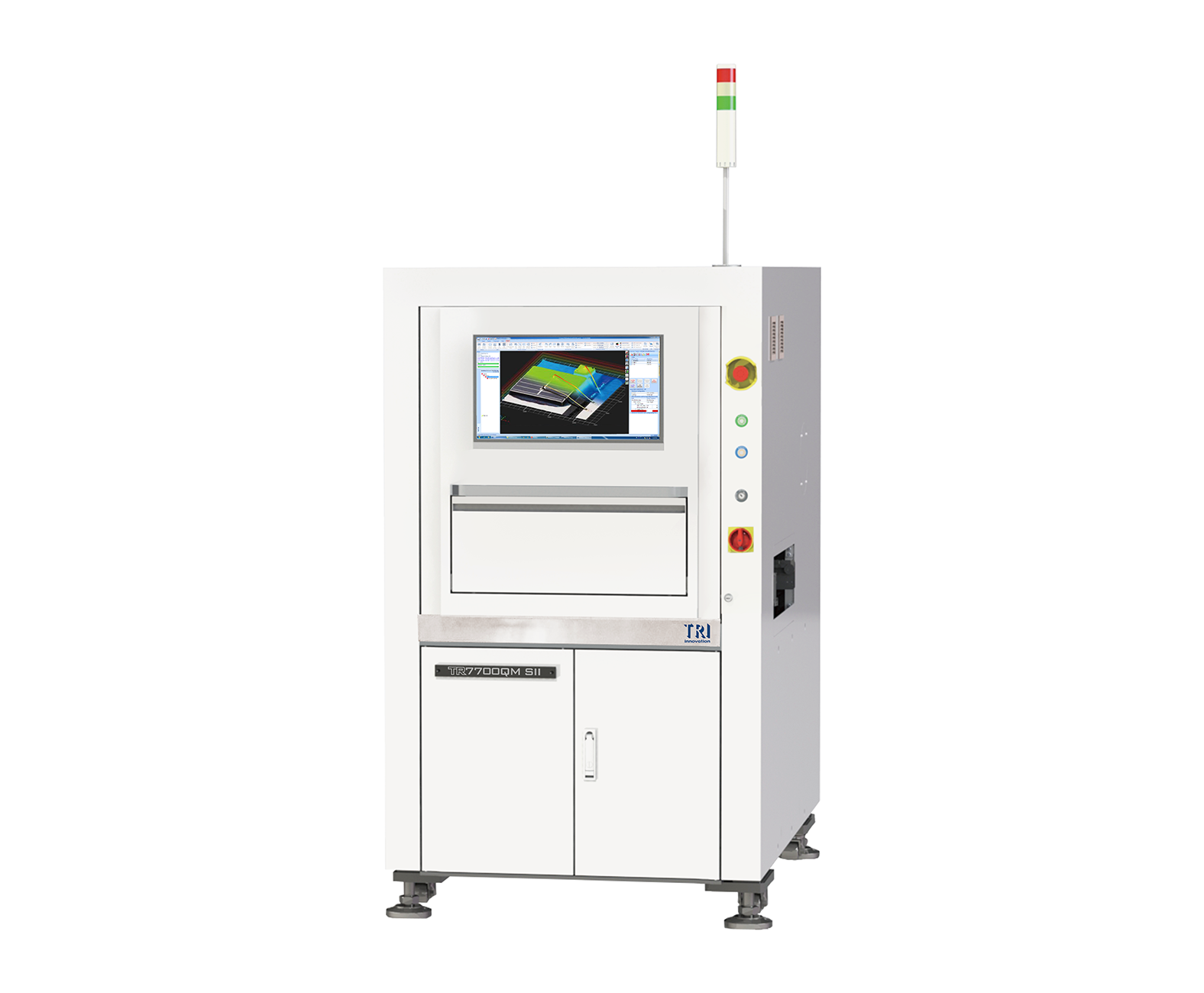

El TR7700QM SII es una plataforma de alta precisión con tecnología de imágenes de 12 MP de alta resolución de 5,5 µm para la industria de semiconductores y embalajes. El AOI 3D Stop-and-Go puede inspeccionar soldado de cables, bumps, SMD, diodo y unión de soldadura. La solución inteligente 3D AOI logra inspección de alta precisión a través de metrología y algoritmos flexibles.
• Inspección Automatizada para la Industria de Semiconductores
• Solución de inspección de alta precisión con 5.5 μm resolución
• Listo para inspeccionar en minutos con la Programación Inteligente de TRI
• Múltiples tecnologías 3D para mayor cobertura
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
Stop-and-Go |
| Top Camera |
12 MP High Speed Camera |
| Angle Camera |
N/A |
| Imaging Resolution |
5.5 μm |
| Lighting |
Multi-phase True Color LED, Coaxial Lighting |
| 3D Technology |
Quad Digital Fringe Projectors |
| Max. 3D Range |
20 mm |
Inspection Performance
| Imaging Speed |
Up to 7.7 cm²/sec |
Motion Table & Control
| X-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Y-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| Z-Axis Control |
Ballscrew + AC Servo with Motion Controller |
| X-Y Axis Resolution |
1 μm with Optional Linear Encoder |
Board Handling
| Max PCB Size |
400 x 330 mm |
| PCB Thickness |
0.6 - 5mm |
| Max PCB Weight |
3 kg |
| Top Clearance |
20 mm |
| Bottom Clearance |
40 mm |
| Edge Clearance |
3 mm. Optional: 5 mm |
| Conveyor |
880 - 920 mm |
Inspection Functions
| Component |
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component |
| Solder |
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging, Through-hole Pins, Lifted Lead, Golden Finger Scratch/ Contamination |
Dimensions
| WxDxH |
1000 x 1460 x 1650 mm
Note: not including signal tower, signal tower height 515 mm |
| Weight |
785 kg |
