Inspección óptica automatizada (AOI)

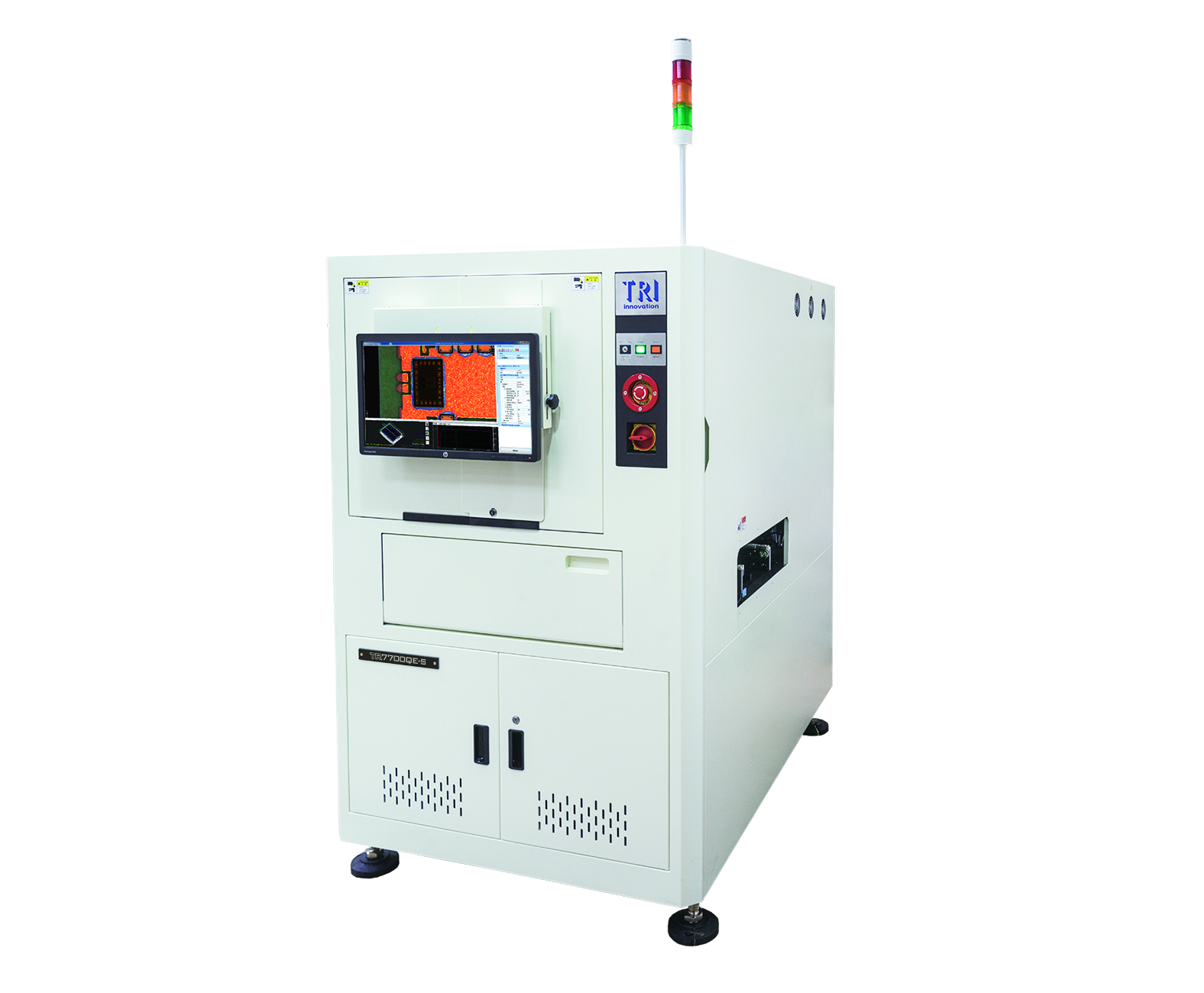

TR7700QE-S

INTRODUCTION

La plataforma TR7700QE-S es de alta precisión con tecnología de imágenes de 12 MP de alta resolución de 5,5 µm para la industria de semiconductores. La plataforma AOI 3D Stop-and-Go puede inspeccionar Wire Bonding, Die Bonding, SMD y uniones de soldadura. TR7700QE-S también incorpora capacidades de metrología y algoritmos de inspección flexibles.

• Inspección Automatizada para la Industria de Semiconductores
• AOI 3D Stop-and-Go de Alta Precisión
• Inspección de defectos en Wire Bonding y Die Bonding
• Listo para inspeccionar en minutos con la Programación Inteligente de TRI

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	12 Mpix
Imaging Resolution	5.5 µm
Lighting	Multi-phase True Color LED

Imaging Performance

Max. Imaging Speed

12 Mpix 3D @ 5.5 µm: 4.1 cm²/sec
12 Mpix 2D @ 5.5 µm: 10.3 cm²/sec

Note: Depending on component distribution

Motion Table & Control

X Axis Control	Linear Motor with Motion Controller (Ballscrew + AC Servo Motor Optional)
Y Axis Control	Dual driven ballscrew + AC-servo with Motion Controller
Z Axis Control	Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution	1 µm

Board Handling

Max. PCB Size	330 x330 mm* *Depending on component distribution
PCB Thickness	0.6-5 mm
Max. PCB Weight	3 kg
Top Clearance	25 mm
Bottom Clearance	40 mm. Optional: 100 mm
Edge Clearance	3 mm. Optional: 4 mm / 5 mm
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component Defects	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective, Upside Down Extra Component Foreign Material Lifted Component
Solder Joint Defects	Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/ Contamination

Dimensions

WxDxH	1100 x 1730 x 1750 mm Note: not including signal tower, signal tower height 520 mm
Weight	920 kg
