Inspección óptica automatizada (AOI)
INTRODUCTION

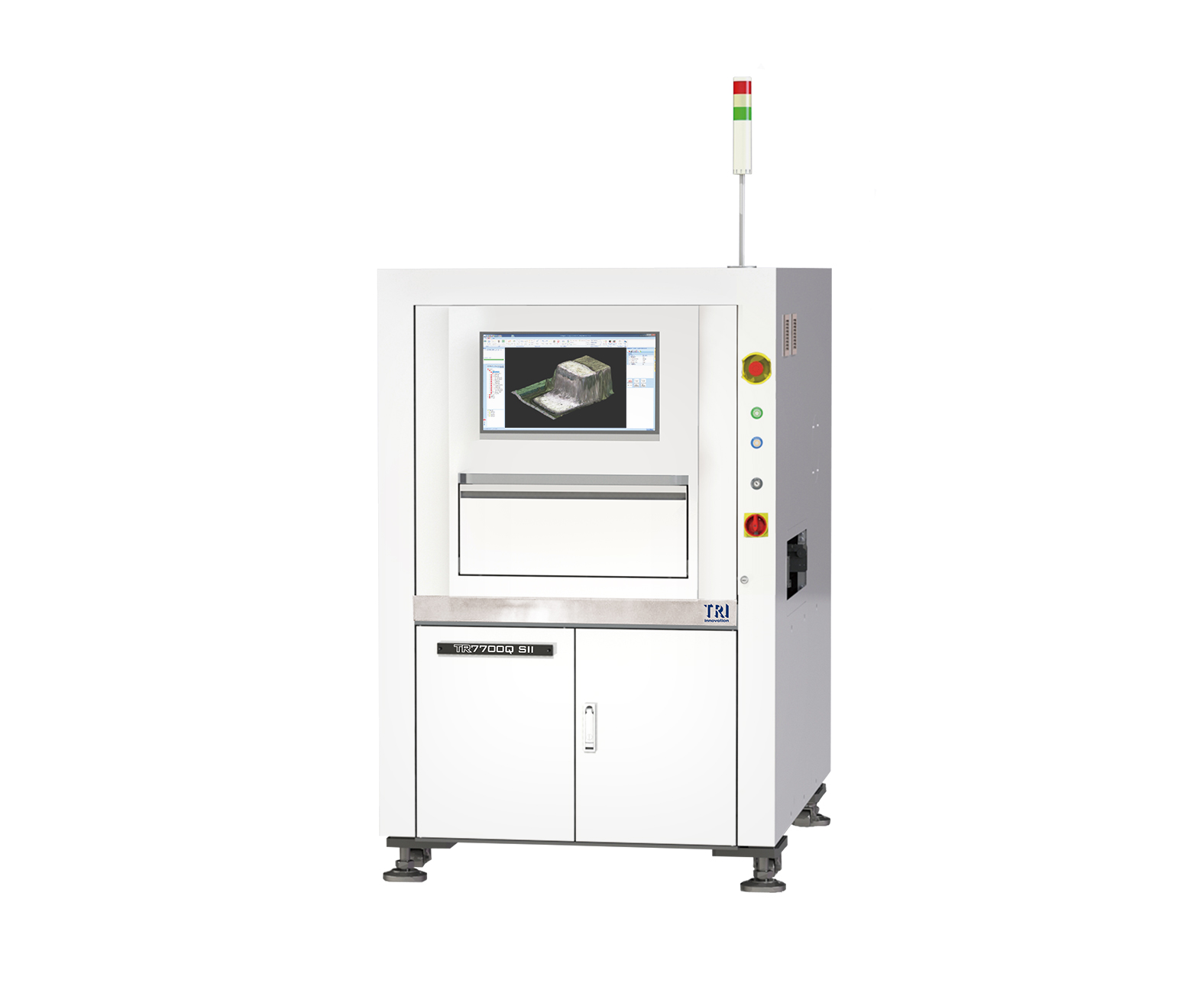

La plataforma TR7700Q SII tiene funcionalidades de autoaprendizaje, algoritmos de inspección flexibles y capacidades de metrología para mediciones exactas e intercambio de datos para aplicaciones Smart Factory. La plataforma tiene una estabilidad mecánica avanzada para una mayor precisión y un mejor GR&R con tecnología de imágenes Stop-and-Go.
• Alta Velocidad de inspección, hasta 57 cm2 / seg.
VIDEO
Optical System
Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View
Inspection Performance
Imaging Speed
Height Resolution
Max. Solder Height
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Optical System
Imaging Method
Stop-and-Go
Top Camera
12 MP/21 MP High Speed Camera
Angle Camera
N/A
Imaging Resolution
9.8 µm, 10 µm, 12 µm, 15 µm (factory setting)
Lighting
Multi-phase True Color LED
3D Technology
Quad Digital Fringe Projectors
Max. 3D Range
@ 9.8 μm: 40 mm
Inspection Performance
Imaging Speed
@ 9.8 μm: 40 cm²/sec
Motion Table & Control
X-Axis Control
Ballscrew + AC Servo with Motion Controller
Y-Axis Control
Ballscrew + AC Servo with Motion Controller
Z-Axis Control
Ballscrew + AC Servo with Motion Controller
X-Y Axis Resolution
1 μm
Board Handling
Max PCB Size
TR7700Q SII: 510 x 460 mm
PCB Thickness
0.6-5 mm
Max PCB Weight
TR7700Q SII: 3 kg. Optional: 5kg
Top Clearance
@ 9.8 μm: 50 mm
Bottom Clearance
40 mm
Edge Clearance
3 mm. Optional: 4 mm / 5 mm
Conveyor
Inline Height: 880 – 920 mm
Inspection Functions
Component
Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective,
Solder
Solder Fillet Height, Solder Volume %, Excess Solder, Insufficient Solder, Bridging,
Dimensions
WxDxH
TR7700Q SII: 1100 x 1720 x 1710 mm
Weight
TR7700Q SII: 910 kg
Imaging System
Camera
X-ray Source
Imaging Resolution
Inspection Method
Motion Table & Control
X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Board Handling
Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height
Dimensions
WxDxH
Weight
Power Requirement
