TR7700QE

INTRODUCTION

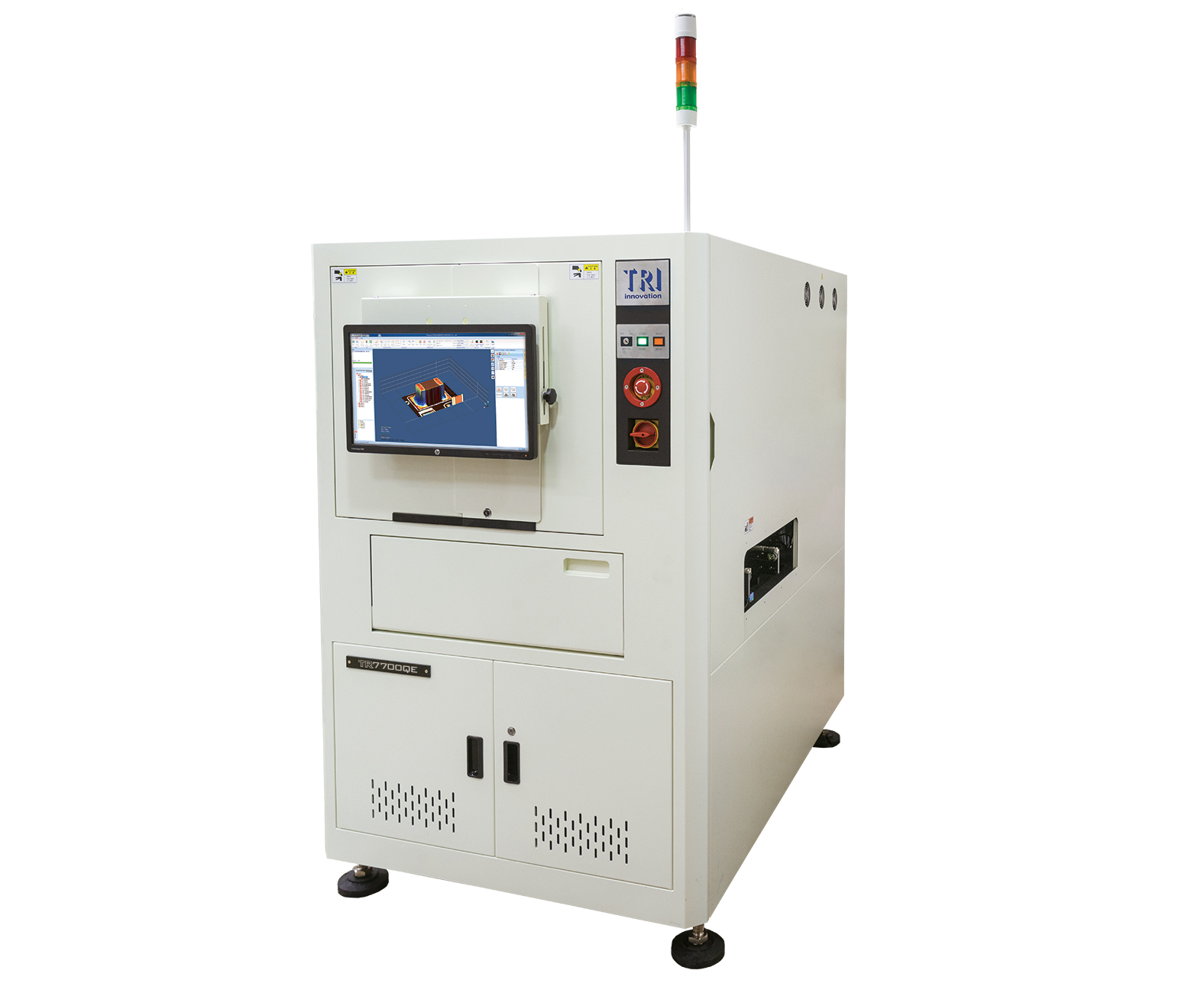

El AOI TR7700QE ofrece un alto desempeno en la inspeccion de componentes y uniones de soldadura combinando la nueva generacion de tecnologias 2D y 3D basandose en una projeccion adaptativa de 4 projectores fringe Pattern. Con un software nuevo que asegura una rapida programacion en base al CAD, ademas de una gran gama de nuevas caracteristicas y templates customizados para lograr Cero escapes en cualquier PCBA.

• Covertura avanzada de 2D +3D

• 4 Proyectores digitales de Fringe Pattern

• hasta 40mm de rango para medicion de altura en imagenes 3D

• Alta velocidad CoaxPress para imagenes

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method	Stop-and-Go Imaging
Top Camera	12 Mpix
Angle Camera	N/A
Imaging Resolution	10 µm, 15 µm (factory setting)
Lighting	Multi-phase true color LED, Coaxial lighting
3D Technology	Quad Digital Fringe Projectors
Max. 3D Range	0-40 mm* * Requires Z axis control. The default 3D height is 0 – 20mm

Inspection Performance

Imaging Speed

12 Mpix@ 10 µm: 13.5 cm²/sec
12 Mpix@ 10 µm: 23 cm²/sec with optional CoaXPress
12 Mpix@ 15 µm: 30 cm²/sec
12 Mpix@ 15 µm: 50 cm²/sec with optional CoaXPress

Note: Depending on component distribution

Motion Table & Control

X-Axis Control	Ballscrew + AC-servo controller (Linear motor optional)
Y-Axis Control	Dual driven ballscrew + AC-servo controller
Z-Axis Control	Ballscrew + AC-servo controller (optional)
X-Y Axis Resolution	1 µm

Board Handling

Max PCB Size	TR7700QE: 510 x 460 mm TR7700L QE: 660 x 610 mm TR7700QE DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness	0.6-5 mm
Max PCB Weight	3 kg
Top Clearance	50 mm
Bottom Clearance	40 mm
Edge Clearance	3 mm [5 mm optional]
Conveyor	Inline Height: 880 – 920 mm * SMEMA Compatible

Inspection Functions

Component	Missing Tombstoning Billboarding Polarity Rotation Shift Wrong Marking (OCV) Defective Upside Down Extra Component Foreign Material Lifted Component
Solder	Solder Fillet Height Solder Volume % Excess Solder Insufficient Solder Bridging Through-hole Pins Lifted Lead Golden Finger Scratch/Contamination

Dimensions

WxDxH	TR7700QE: 1100 x 1730 x 1750 mm TR7700L QE: 1250 x 1880 x 1750 mm TR7700QE DL: 1100 x 1830 x 1750 mm Note: not including signal tower, signal tower height 520 mm
Weight	TR7700QE: 920 kg TR7700L QE: 1170 kg TR7700QE DL: 950 kg

Imaging System

Camera
X-ray Source
Imaging Resolution
Inspection Method

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Capabilities
Defects

Dimensions

WxDxH
Weight
Power Requirement
