Inspección por rayos X automatizada (AXI)
|
INTRODUCTION

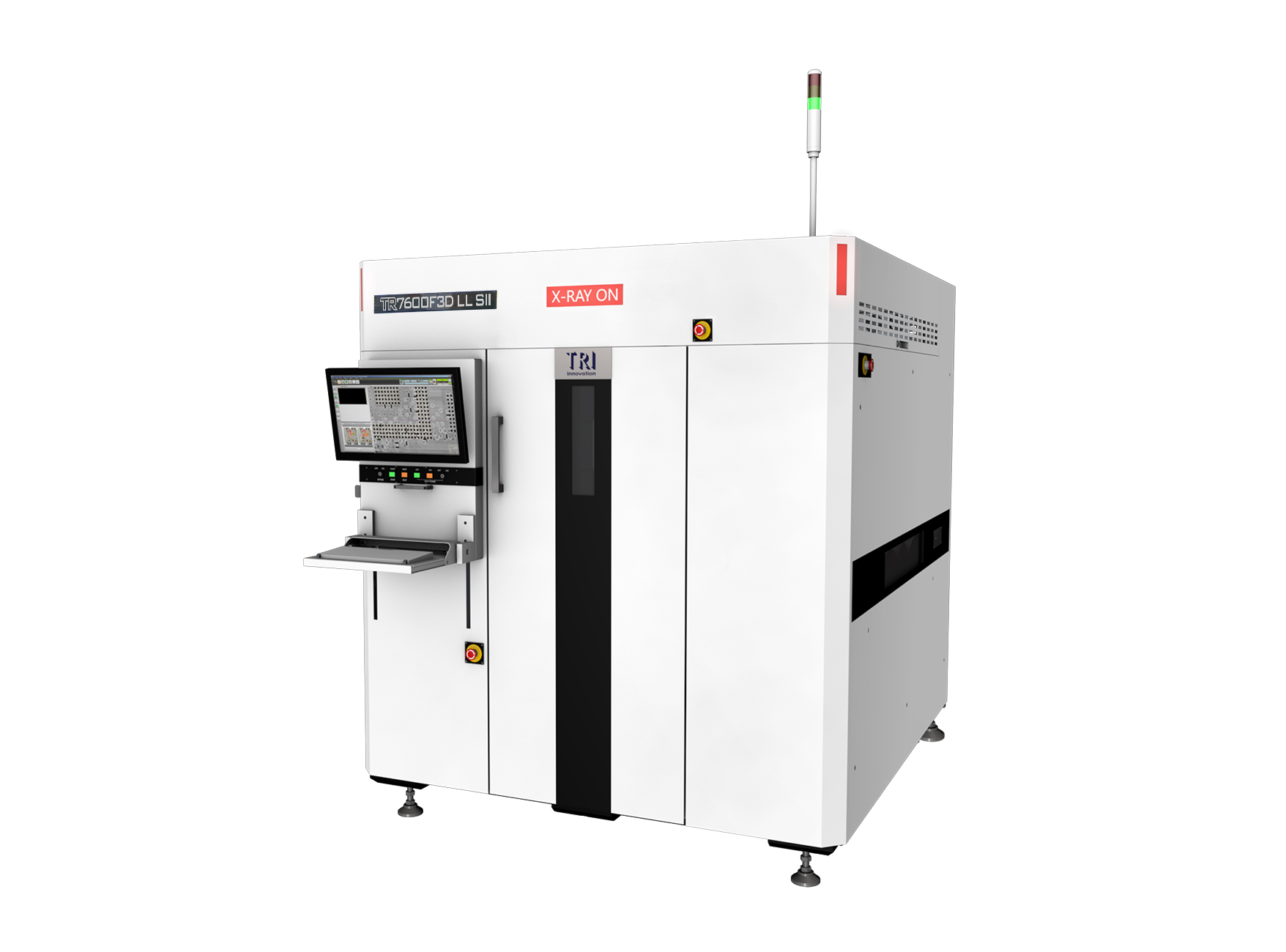

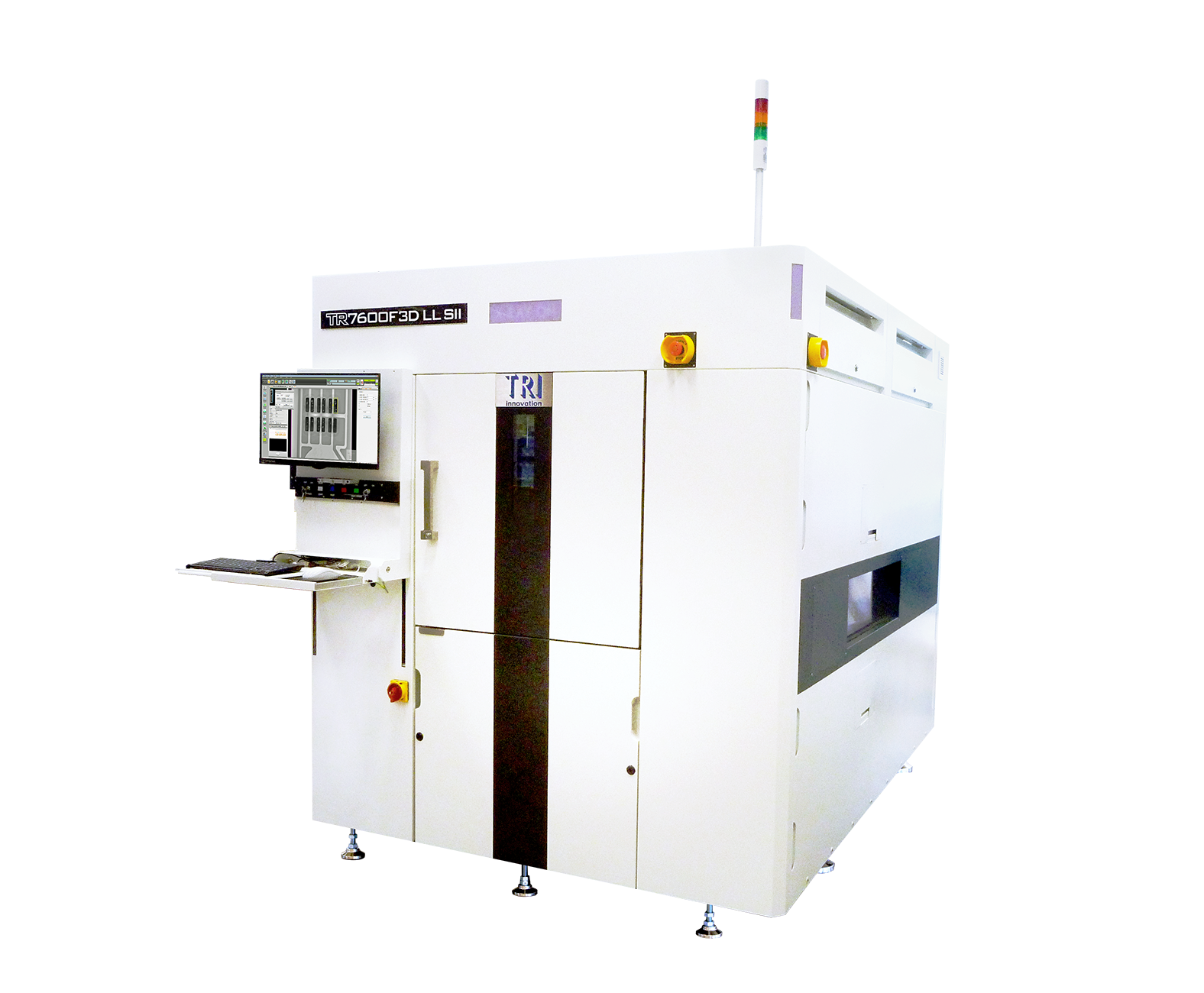

El TR7600F3D LL SII es la nueva solución de inspección 3D por rayos X de alta velocidad, para la inspección de placas grandes, hasta 1000 mm x 660 mm. El TR7600F3D LL SII reduce los escapes y las llamadas falsas sin comprometer el tiempo de ciclo de la línea de producción.
• Solución AXI para placas grandes, hasta 1000 mm x 660 mm.
• Alta precisión de 5 µm para alta cobertura de defectos
• Diseño mecánico de próxima generación para velocidades más altas de hasta 20 FOV/s
• Maquina Inteligente con facilidad a conexión a MES
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
Flat Panel Detector |
| X-ray Source |
130 kV Max (User Adjustable) |
| Imaging Resolution |
5 μm ,10 μm, 15 μm, 20 μm, 25 μm, 30 μm |
| Inspection Method |
2D, 2.5D, 3D Slicing, Planar CT (Optional) |
Motion Table & Control
| X-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
| Y-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
| Z-Axis Control |
High-Precision Ballscrew + AC-Servo Controller |
| X-Y Axis Resolution |
N/A |
Board Handling
| Max PCB Size |
1000 x 660 mm*
* The Max. PCB Size will vary depending on the angle of incidence |
| PCB Thickness |
0.4 - 7 mm |
| Max PCB Weight |
12 kg |
| Top Clearance |
@ 20/25/30 μm: 50 mm
@ 15 μm: 45 mm
@ 10 μm: 25 mm
@ 5 μm: 5 mm |
| Bottom Clearance |
@ 30 μm: 55 mm
@ 5/10/15/20/25 μm: 70 mm |
| Edge Clearance |
3 mm or 5 mm |
| Conveyor Height |
880 - 920 mm
* SMEMA Compatible |
Inspection Functions
| Capabilities |
Missing
Misalignment
Tombstone
Billboard
Tantalum Polarity
Rotation
Floating |
| Defects |
Insufficient/Excess Solder
Bridging
Open
Solder Ball
Non-wetting
Void
Lifted Lead |
Dimensions
| WxDxH |
1730 x 2300 x 1975 mm
Note: not including signal tower, height: 502 mm |
| Weight |
4850 kg |
| Power Requirement |
200 - 240 VAC single phase, 50/60 Hz, 4 kVA |
|
