TR7600TL SIII


TR7600TL SIII

INTRODUCTION

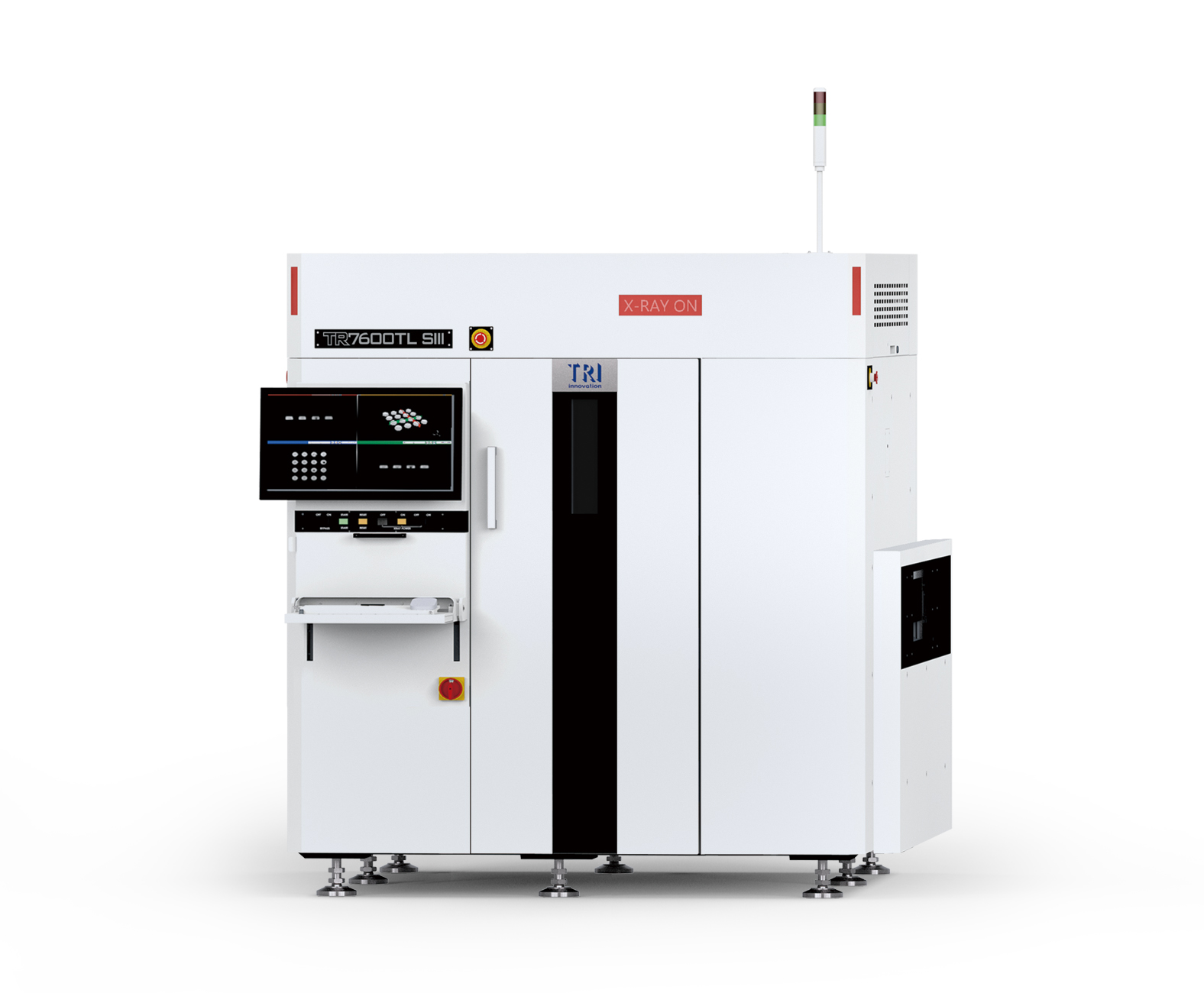

El TR7600TL SIII es el nueva plataforma AXI 3D con capacidades CT diseñado para la inspección de placas de mayor tamaño, hasta 1200 mm x 660 mm. La plataforma de la serie TR7600TL SIII ofrece una velocidad y un rendimiento excepcionales sin comprometer la resolución de la imagen.

• Inspección por rayos X 3D de ultra alta velocidad

• AXI de máxima resolución para placas grandes

• Programación inteligente con algoritmos robustos

Please login to access member content

Optical System

Imaging Method
Camera
Imaging Resolution
Lighting
3D Technology
Field of View

Inspection Performance

Imaging Speed
Height Resolution
Max. Solder Height

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution
Z-Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor Height

Inspection Functions

Defects
Measurement

Dimensions

WxDxH
Weight

Optical System

Imaging Method
Top Camera
Angle Camera
Imaging Resolution
Lighting
3D Technology
Max. 3D Range

Inspection Performance

Imaging Speed

Motion Table & Control

X-Axis Control
Y-Axis Control
Z-Axis Control
X-Y Axis Resolution

Board Handling

Max PCB Size
PCB Thickness
Max PCB Weight
Top Clearance
Bottom Clearance
Edge Clearance
Conveyor

Inspection Functions

Component
Solder

Dimensions

WxDxH
Weight

Imaging System

Camera	Ultra-High Speed Line-Scan CCD Cameras. 3 or 5 Units (9 or 15 Sensors)
X-ray Source	60 -130 kV
Imaging Resolution	10 μm - 25 μm
Inspection Method	2D, 2.5D, 3D Slicing, Planar CT (optional)

Motion Table & Control

X-Axis Control	High-precision ballscrew + AC-servo controller
Y-Axis Control	High-precision ballscrew + AC-servo controller
Z-Axis Control	High-precision ballscrew + AC-servo controller
X-Y Axis Resolution	N/A

Board Handling

Max PCB Size	1200 x 660 mm
PCB Thickness	0.6-7 mm
Max PCB Weight	12 kg
Top Clearance	@ 25 μm: 50 mm @ 20 μm: 50 mm @ 15 μm: 30 mm @ 10 μm: 15 mm For confirming the specific technical requirements, please contact TRI’s sales representative
Bottom Clearance	@ 25 μm: 55 mm @ 20 μm: 70 mm @ 15 μm: 70 mm @ 10 μm: 70 mm
Edge Clearance	3 mm or 5 mm
Conveyor Height	880 - 920 mm. Optional: 940-965 mm * SMEMA Compatible

Inspection Functions

Capabilities	Missing Misalignment Tombstone Billboard Tantalum Polarity Rotation Floating
Defects	Insufficient/Excess Solder Bridging Open Solder Ball Non-wetting Void Lifted Lead

Dimensions

WxDxH	2014 x 2000 x 1940 mm Note: not including signal tower, height: 510 mm
Weight	4750 kg
Power Requirement	200 – 240 VAC, Three Phase, 50 / 60 Hz, 7 kVA. Optional: 346 – 416 VAC Three Phase Transformer
