Probador de circuito (ICT)

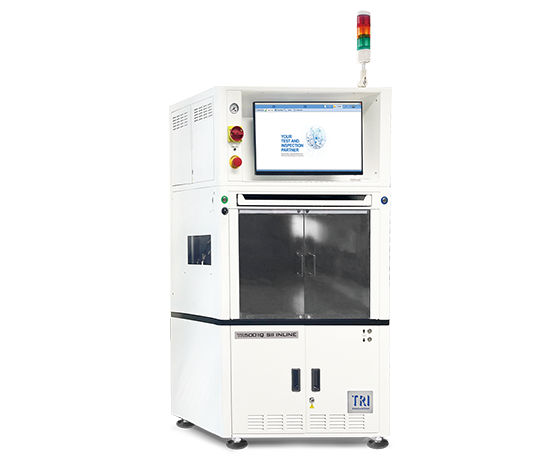

TR5001 SII INLINE
TR5001 SII INLINE
INTRODUCTION
La próxima generación de ICT + FCT en paralelo ofrece un rendimiento revolucionario de prueba paralela Multi-núcleo con hasta 4 núcleos independientes de alto rendimiento. El controlador en línea compatible con SMEMA reduce la carga de trabajo del operador y aumenta el rendimiento, la interfaz de desconexión rápida y durable junto con la auto-calibración incorporada y el autodiagnóstico garantizan la confiabilidad de las pruebas a largo plazo.
• Nueva Generación de Tester en Paralelo de Multi-Núcleo Flexible
• Controlador de prueba en serie de última generación con hasta 8 puertos en cualquier pin
• Solución de acceso limitado y ampliación de pruebas funcionales mediante módulos PXI
• Autodiagnóstico incorporado y función de Auto-Calibración
• Medición y pruebas de alta precisión
• Solución de prueba con cobertura de fallos en línea compatible con SMEMA
• Interfaz de usuario intuitiva con desarrollo fácil de programa basado en flujo
• Auto-calibration by DMM
Tester Specifications
Analog/hybrid test points
1 Core- 3,456. Optional: 4,480
2 Cores- 3,328. Optional: 4,096
4 Cores- 4,096
Operating System
Microsoft® Windows 11
Fixture Type
Inline with long lifespan Quick Disconnection Interface
Standard Testing Components
Analog Test Hardware
6-wire measurement switching matrix
Programmable AC/DC/DC High voltage and current sources
AC/DC voltage, DC current measurement
Component R/L/C measurement
TestJet vectorless open circuit detection
Arbitrary Waveform Generator
Industry 4.0
Communication Standard
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852
Yield Management System
YMS 4.0 (Optional)
Board Handling
Min. PCB Size
50 x 50 mm
Max. PCB Size
510 x 510 mm
System Requirement
Power Requirement
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA.
Power Feature
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection.
Air Requirement
Dry Air 4 – 8 kg/cm2
Dimensions
WxDxH
900 x 1200 x 1680 mm
Note: not including signal tower,signal tower height: 392 mm
Weight
687 kg
