TR5001T SII TINY INLINE


TR5001T SII TINY INLINE

INTRODUCTION

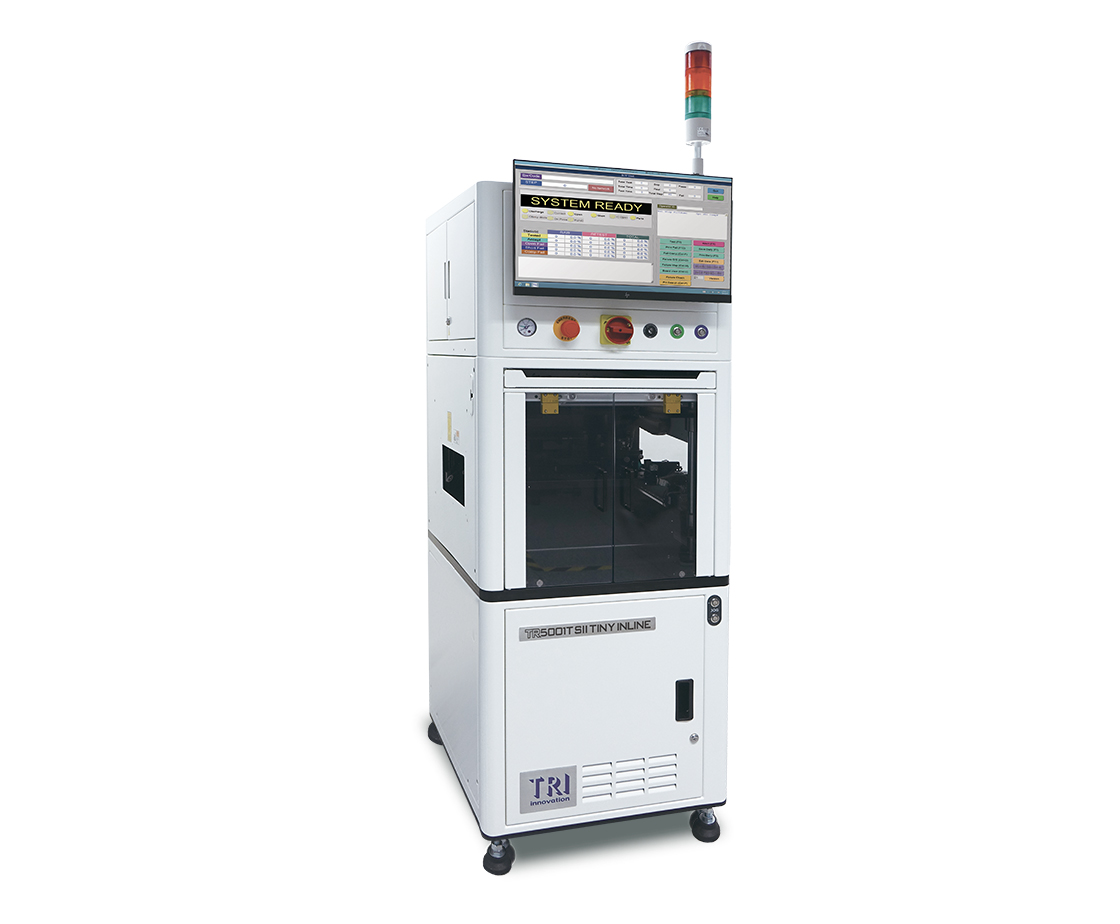

El TR5001T SII TINY INLINE es una plataforma de prueba automatizada flexible diseñada para pruebas de probador de circuito (ICT) en tarjetas de pequeño tamaño, de hasta 640 puntos de prueba. La plataforma totalmente eléctrica compatible con SMEMA se caracteriza por una footprint mínima y capacidad TR5001T SII TINY ICT plena.

• Plataforma de prueba en línea con todas las características
• Diseñada para probadores ICT TR5001T SII TINY de TRI
• Footprint mínima con integración SMEMA
• Diseño totalmente eléctrico sin aire comprimido
• Hasta 640 puntos de prueba analógicos MDA

Tester Specifications

Analog/hybrid test points	640 analog test points
Operating System	Microsoft^® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion

Standard Testing Components

Analog Test Hardware

• 6-wire measurement switching matrix
• Measures voltage, current and frequency
• Component R/L/C/D measurement
• 60 V high voltage current source for LED strip testing

Optional Components

Analog Hardware	• TestJet vectorless open circuit detection • Sine Wave Generator
Digital Testing	• Boundary Scan • Data Acquisition and Audio analyzer modules • Enhanced Digital Test Module
Yield Management System	YMS 4.0

Board Handling

Min PCB Size	70 x 70 mm
Max PCB Size	330 x 250 mm
PCB Thickness	0.6 - 5 mm

Dimensions

WxDxH	600 x 800 x 1640 mm Note: not including signal tower, height: 392 mm
Weight	310 kg

Please login to access member content
