Probador de circuito (ICT)
|
INTRODUCTION

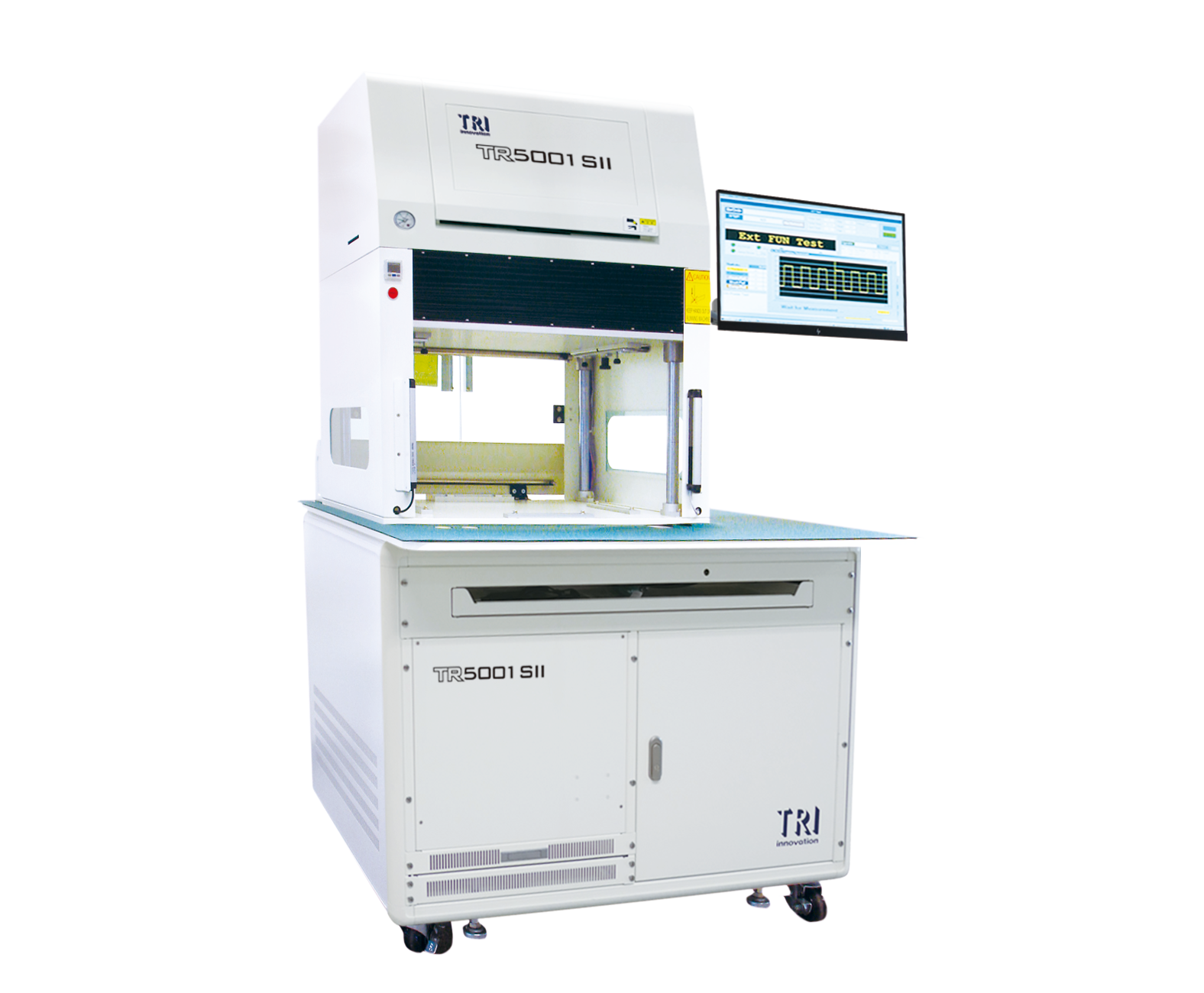

La próxima generación de ICT+FCT en paralelo ofrece un rendimiento revolucionario de prueba paralela Multi-núcleo con hasta 4 núcleos independientes de alto rendimiento. Ofreciendo una mejorada y precisa medición, el TR5001Q/D SII la nueva incorporación de auto-calibración y el autodiagnóstico garantizan la confiabilidad de las pruebas a largo plazo.
• Nueva Generación de Tester en Paralelo de Multi-Núcleo Flexible
• Controlador de prueba en serie de última generación con hasta 8 puertos en cualquier pin
• Solución de acceso limitado y ampliación de pruebas funcionales mediante módulos PXI
• Autodiagnóstico incorporado y función de Auto-Calibración
• Medición y pruebas de alta precisión
• Interfaz de usuario intuitiva con desarrollo fácil de programa basado en flujo
• Auto-calibration by DMM
Tester Specifications
|
Analog/hybrid test points |
1 Core- 3,456. Optional: 4,480
2 Cores- 3,328. Optional: 4,096
4 Cores- 4,096 |
|
Operating System |
Microsoft® Windows 11 |
|
Fixture Type |
Offline press type fixture |
Standard Testing Components
|
Analog Test Hardware |
-
6-wire measurement switching matrix
-
Programmable AC/DC/DC High voltage and current sources
-
AC/DC voltage, DC current measurement
-
Component R/L/C measurement
-
TestJet vectorless open circuit detection
-
Arbitrary Waveform Generator
|
Industry 4.0
|
Communication Standard |
SMEMA, SECS/GEM, IPC-CFX-2591, IPC-HERMES-9852 |
|
Yield Management System |
YMS 4.0 (Optional) |
Optional Components
System Requirement
|
Power Requirement |
200 – 240 V, Single Phase, 50/60 Hz, 3 kVA. |
|
Power Feature |
Power Line Earth Ground Auto Detection. Power 50/60 Hz Auto Detection. |
|
Air Requirement |
Dry Air 4 – 8 kg/cm2 |
Dimensions
|
WxDxH |
1050 x 850 x 1743 mm |
|
Weight |
300 kg |
Optical System
| Imaging Method |
|
| Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Field of View |
|
Inspection Performance
| Imaging Speed |
|
| Height Resolution |
|
| Max. Solder Height |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
| Z-Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Optical System
| Imaging Method |
|
| Top Camera |
|
| Angle Camera |
|
| Imaging Resolution |
|
| Lighting |
|
| 3D Technology |
|
| Max. 3D Range |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor |
|
Imaging System
| Camera |
|
| X-ray Source |
|
| Imaging Resolution |
|
| Inspection Method |
|
Motion Table & Control
| X-Axis Control |
|
| Y-Axis Control |
|
| Z-Axis Control |
|
| X-Y Axis Resolution |
|
Board Handling
| Max PCB Size |
|
| PCB Thickness |
|
| Max PCB Weight |
|
| Top Clearance |
|
| Bottom Clearance |
|
| Edge Clearance |
|
| Conveyor Height |
|
Dimensions
| WxDxH |
|
| Weight |
|
| Power Requirement |
|
|
