半导体与封装产业应用

TRI provides industry-leading AI-Powered Inspection and Metrology solutions for Semiconductor Front-end to Back-end processes. TRI platforms utilize advanced imaging technologies to detect minuscule and hidden defects, ensuring high-reliability inspection.

Features

AI-Powered Solutions

Interworking with EFEM

Inking Rejection Module

Micro Measurements

High Resolution

Data Traceability

Die/Wire Bonding

AI-Powered Solutions

Comm. Standard

Multiple Imaging Technologies

Digital Fringe Pattern
3D Laser for Special Surfaces
Depth From Focus (DFF)
Short Wave Infrared
Confocal Chromatic Sensor
X-ray Imaging

Semiconductor Inspection & Metrology Applications

TRI provides precise inspection solutions for Wafer Level & Panel Level Packaging (WLP/PLP), including patterned wafers, bumps, thin film thickness, and TSV. TRI solutions also excel at die bonding and assembly, detecting a wide range of defects, including chipping, cracks, and contamination.

Chiplet & Chip-on-Wafer (CoW)
System-in-Package (SIP)
Advanced WLP
TSV Metrology / TGV Inspection
µBump & Cu Pillar

IR Inner Defects
Surface Topology & Profiling
Thin Film Thickness
Wafer Thickness
Patterned Wafer

After Sawing Defects
Die Underfill
Glue, Epoxy & Flux
Wafer Bumping
Wire / Die Bonding

Patterned Wafer

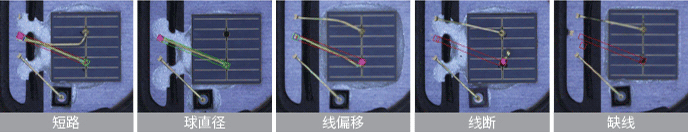

Wire Inspection

Bond Inspection

IR Chipping

Bump

Mini LED Solder

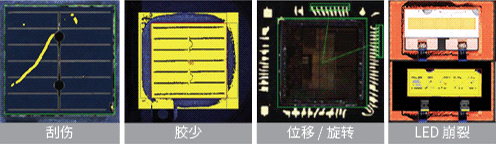

AI-Powered Detection

TRI's AI-powered Inspection is designed to detect
wafer surfaces irregularities, cosmetic defects, foreign
material, and other low-contrast defects.

AI Wire Detection

AI Crack Detection

ADVANCED WLP/PLP

TRI's Advanced WLP/PLP inspection and metrology solutions offer high-resolution wafer inspection and high-precision microscopic measurements. TRI provides versatile surface inspection for highly reflective surfaces, wafer bumping, wafer frames, and trenches, alongside ultra-high-speed thin film thickness. and TSV interposer measurement for accurate depth and diameter assessment.

Wafer AVI

Chiplet Metrology

Laser Saw on Wafer

Epoxy / Resin

Placeholder Image 4

Sampling

BACK-END Inspection

TRI provides advanced inspection and metrology for back-end processes, covering die bonding, wire bonding (down to 15 μm in diameter), and encapsulation (glue / underfill). Key features include Magazine Loader/Unloader, Rejection Module, and more.

IGBT Power Module

0.6 mil Au Wire

Bonding Area

Die Bonding

Ribbon Bond

Metrology Inspection

Easily create formulas with dimensional measurements, inspection parameters, and real measurement values to achieve more precise inspection with less false calls and lower escape.

METROLOGY APPLICATIONS
Through-Silicon Via (TSV)	Spot Size: 50 µm, 25 µm TSV aspect ratio: Max 30:1 Via diameter: 3-20 µm
Thin Film Thickness	Film Thickness Range: 100 nm to 30 µm Measurable Film Types: SiO2, PI, PR, SIN Measurable Substrates: Si, Glass
Other Applications	Chiplet Measurements, Wafer Thickness

Wafer Chip

Thin Film Thickness

TSV Metrology

Wafer Thickness

X-Ray Inspection

TRI's SEMI AXI solutions meet OSAT requirements with faster cycle times and sharper images. The AI-Powered X-ray solutions are capable of identifying defects as small as 14 x 14 μm and ensure high reliability of GR&R < 10%. The SEMI AXI also support SECS/GEM and have optional vacuum block to ensures stability for accurate detection.

Cu Pillar

C4 Bump

3D CT Bump

TGV Void Detection
