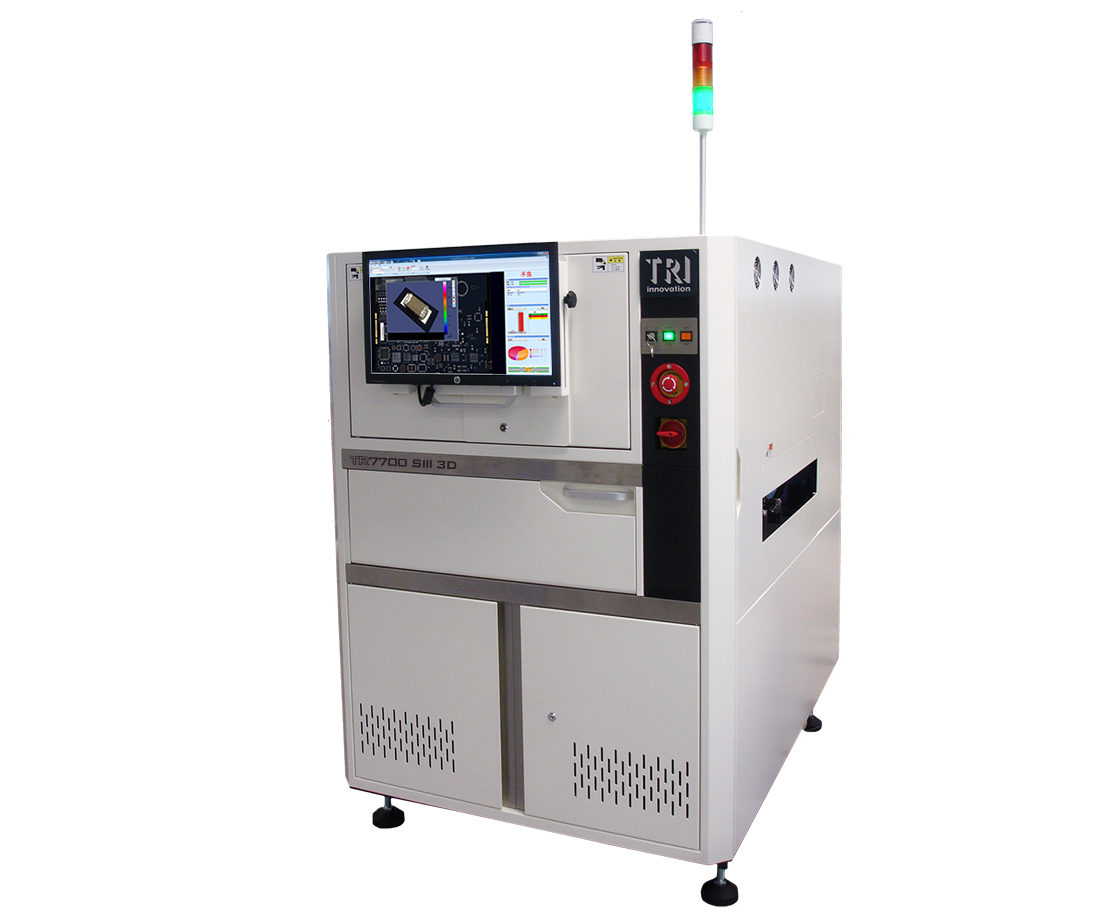

  • TR7700 SIII 3D

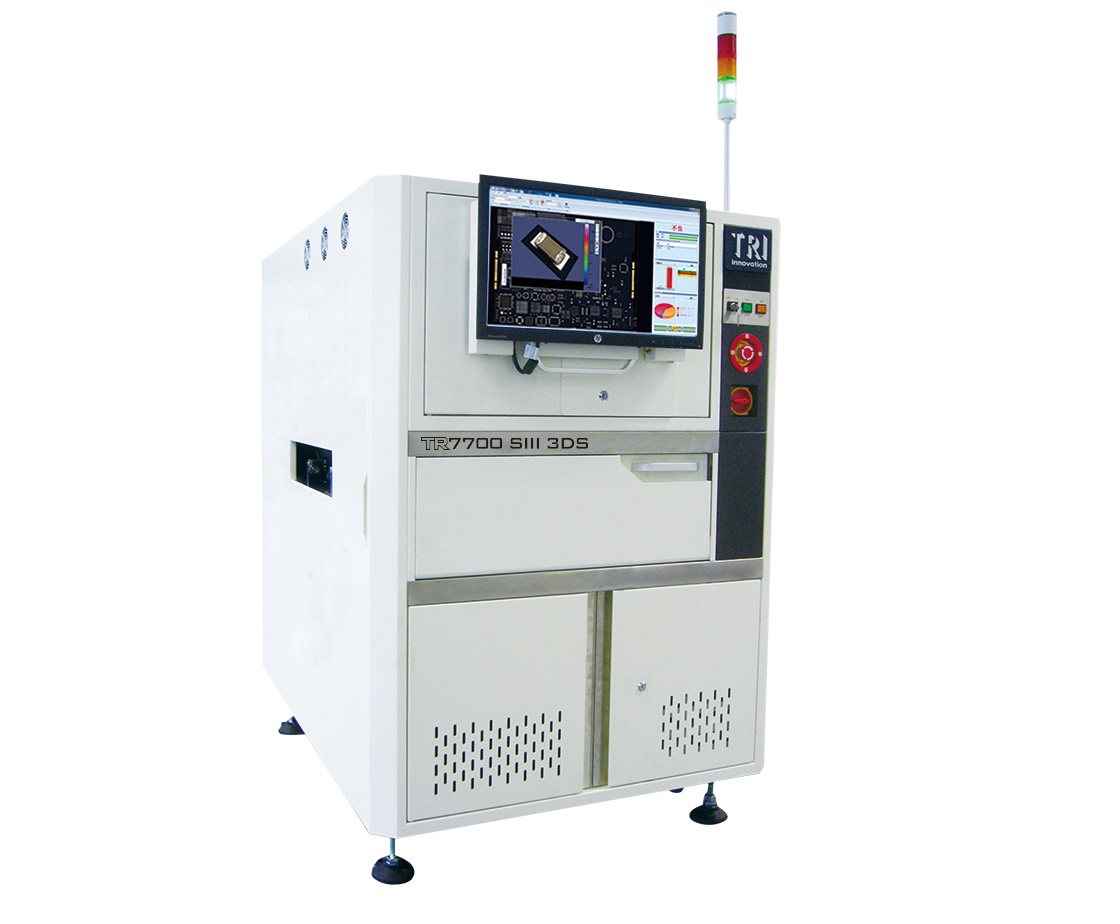

  • TR7700 SIII 3DS
TR7700 SIII 3D

INTRODUCTION

TRI’s ground breaking 3D AOI solution delivers the fastest hybrid PCB inspection combining optical and blue-laser-based true 3D profile measurement for the highest automated defect symptom coverage possible. Integrated state-of-the-art software solution and third generation intelligent hardware platform offer stable and robust 3D solder and component defect inspection and with high inspection coverage and easy programming.
  • • High Speed 2D + 3D Inspection of Up to 01005 Components
    • High Defect Coverage Using Hybrid 2D + 3D Inspection Technology
    • True 3D Profile Measurement Using Dual Laser Units
    • Intelligent Rapid Programming Interface with Auto Library and Offline Editing
