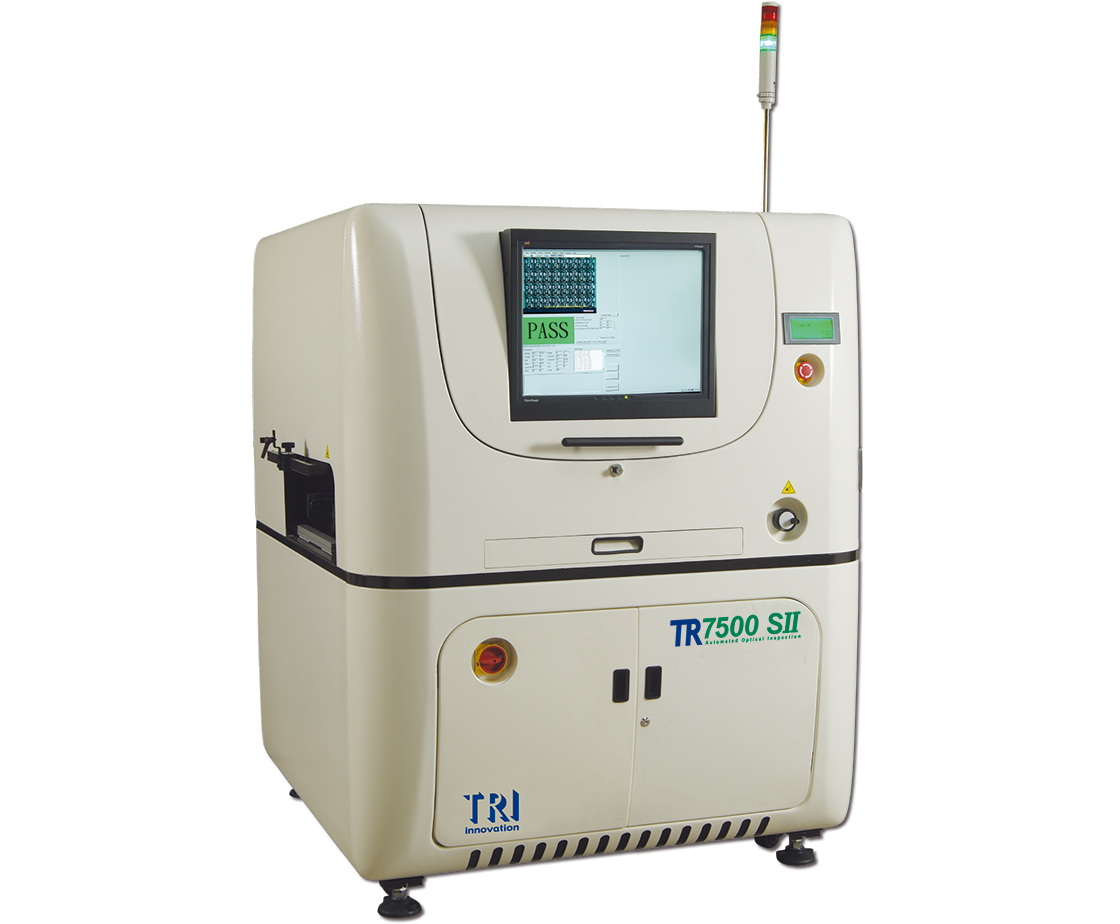

TR7500 SII

INTRODUCTION

Featuring a large FOV 3-CCD color camera and four angled cameras, the TR7500 SII automated optical inspection offers double the scanning speed of TR7500 with identical inspection performance in an inline solution. The system is capable of high performance inspection at resolutions ranging from 10 to 15 µm, utilizing TRI’ hallmark on-the-fly Dynamic Imaging technology for powerful pre/post reflow inspection without generating vibration associated with stop-and-go systems. TR7500 SII features a zone-controllable RGB+W lighting system with low-angle lighting for better inspection of polarity and black components and is capable of inspecting 01005 fine pitch components in both lead-free and legacy PCB assemblies.
  •  • Ultra high speed Inline Color AOI with complete inspection coverage
     • Precise large FOV 3-CCD color camera ready for 01005 component inspection
     • Advanced RGB+W lighting system for improved solder and marking inspection
