TR7500

INTRODUCTION

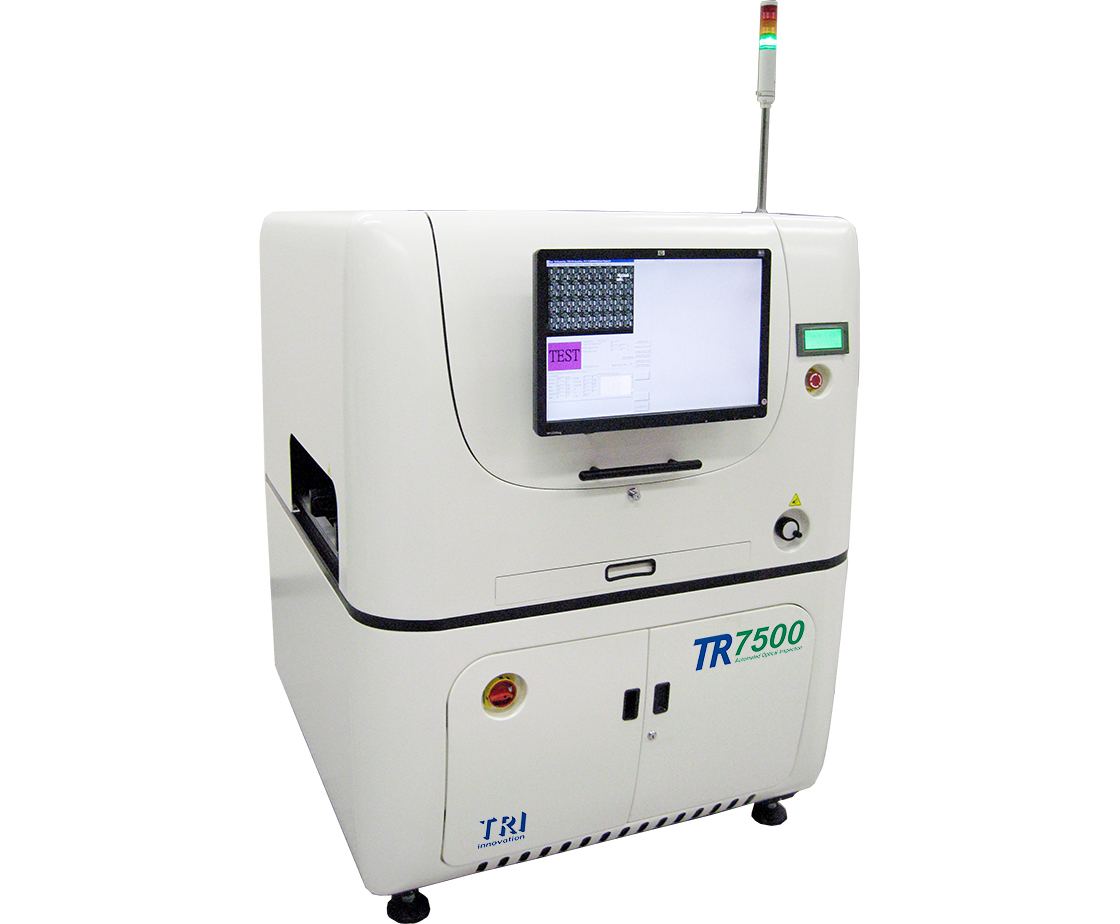

Combining a 3-CCD color camera and four angled cameras, the TR7500 automated optical inspection offers wide defect coverage in a cost effective inline solution. The system is capable of inspection at resolutions ranging from 25 to 10 µm, utilizing TRI’ hallmark Dynamic Imaging technology for powerful pre/post reflow inspection without generating vibration  associated with stop-and-go systems. TR7500 features a zone-controllable RGB+W lighting system with low-angle lighting for better inspection of polarity and black components and is capable of inspecting 01005 fine pitch components in both lead-free and legacy PCB assemblies.
  •  • Fast Inline Color AOI with multiple angled views
     • Large format color camera ready for 01005 component inspection
     • Cost effective full coverage AOI solution
